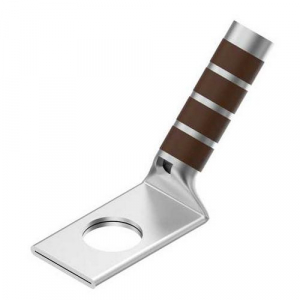

Order YAZ2CTC3845 by Burndy 25020356 Cu Terminal, 1 Hole, (Pack of 25 pcs) - US Mega Store

Burndy . YAZ2CTC3845

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YAZ2CTC3845
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YAZ2CTC3845 by Burndy 25020356 Cu Terminal, 1 Hole, (Pack of 25 pcs) - US Mega Store
diameter, length0.42
height1.42
height_AttribDimension - Height inch
length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty1, Physical Attribute - Number of Holes1
MPN, SKUYAZ2CTC3845
qtyInStock-2
qtySourceFieldMap
snippet<p><strong>Burndy, YAZ2CTC3845, 25020356 Cu Terminal, 1 Hole </strong> </p>
tierPrice122.22
width0.6
width_AttribDimension - Pad Width inch
Color CodeBrown
Connector TypeTerminal
Die Index10
Feature - Barrel StyleSkived
Feature - Barrel TypeLong
Material, Conductor - MaterialCopper
PlatedYES
Plating TypeTin - Electro Plated
TypeLong Barrel, Skive, Tin Plated
Dimension - B Length inch1.25 in
Dimension - Bolt Hole Size inch0.39 in
Dimension - Height inch1.42 in
Dimension - Hole Size inch0.40 in
Dimension - Hole Size mm10 mm
Dimension - L Length Overall mm56 mm
Dimension - Length Overall inch2.20 in
Dimension - N inch0.41 in
Dimension - Outside Diameter inch, Dimension - Z inch0.42 in
Dimension - Pad Width inch0.60 in
Dimension - Strip Length inch1-5/16
Physical Attribute - Tongue Angle45 Degree
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper Str Navy Size60 (37) Navy
Conductor - Copper Str Size2 AWG
Certification - CSA Approved, UL ListedYes
Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYAZ2CTC38451-211 @ $22.22
