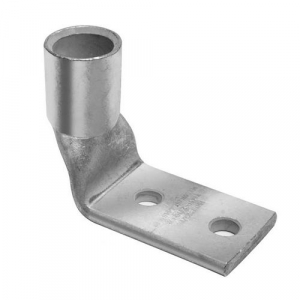

Order YAZ4C2TC10E290 by Burndy 25019278 Copper Compression Terminal, (Pack of 10 pcs) - US Mega Store

Burndy . YAZ4C2TC10E290

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YAZ4C2TC10E290
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YAZ4C2TC10E290 by Burndy 25019278 Copper Compression Terminal, (Pack of 10 pcs) - US Mega Store
diameter, length0.34
height1.53
height_AttribDimension - Height inch
length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty11
MPN, SKUYAZ4C2TC10E290
qtyInStock-2
qtySourceFieldMap
snippet<p>Copper compression terminal, tin - electro plated, 2 hole, dieindex 8,90 degree. </p>
tierPrice116.34
width0.5
width_AttribDimension - Pad Width inch
Color CodeGray
Connector TypeTerminal
Die Index8;346
Feature - Barrel StyleSkived
Feature - Barrel TypeLong
Material, Conductor - MaterialCopper
Physical Attribute - Number of Holes2
Physical Attribute - Tongue TypeStandard
PlatedY
Plating TypeTin - Electro Plated
TypeLong Barrel, Skive, Tin Plated
Dimension - B Length fraction1-1/8 in
Dimension - B Length inch1.12 in
Dimension - Bolt Hole Size inch0.20 in
Dimension - Height inch1.53 in
Dimension - Hole Size inch0.21 in
Dimension - Hole Size mm5 mm
Dimension - L Length Overall mm39 mm
Dimension - Length Overall inch1.54 in
Dimension - N inch0.25 in
Dimension - Outside Diameter inch0.34 in
Dimension - Pad Width inch0.50 in
Dimension - Strip Length inch1-3/16
Dimension - Z inch0.27 in
Physical Attribute - Tongue Angle90 Degree
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper Str Navy Size40 (19) Navy
Conductor - Copper Str Size4 AWG

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYAZ4C2TC10E2901-211 @ $16.34
