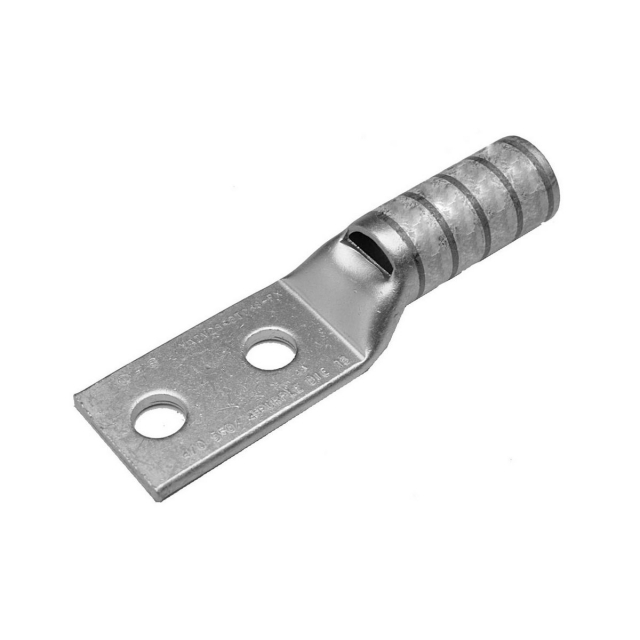

Burndy 25019240 Copper Compression Lug, 750 Kcmil YAZ442NTCFX. ✅$20 OFF Orders over $599 ✅. Save Now! ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Burndy . YAZ442NTCFX

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitinch
diameter, height, length1.5
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple1
MPN, SKUYAZ442NTCFX
qtyInStock0
snippetBurndy 25019240 Copper Compression Lug, 750 Kcmil YAZ442NTCFX. ✅$20 OFF Orders over $599 ✅. Save Now! ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width2.19
width_AttribDimension - Pad Width inch
ApplicationWire Termination
Color CodeYellow
Connector TypeLONG BARREL
Construction Material - MainCopper tubing
Die IndexL116
EU RoHS Indicator, Plated, Certification - CSA Approved, UL ListedYes
Feature - Barrel StyleSkived
Feature - Barrel TypeLong
Finish TypeTin-Plated
Material, Conductor - MaterialCOPPER
Physical Attribute - Number of Holes2
Plating TypeTin-Electro plated
Sub Brand, Trade NameHYLUG
TypeYAZ-2-NTFX, Long Barrel Narrow Tongue
Dimension - B Length fraction3 in
Dimension - B Length inch3.00 in
Dimension - Bolt Hole Size inch0.52 in
Dimension - Bolt Size fraction, Dimension - Hole Size fraction, Dimension - Stud Size fraction1/2
Dimension - Bolt Size inch0.5
Dimension - Hole Size inch0.56
Dimension - Hole Size mm14 mm
Dimension - L Length Overall mm180 mm
Dimension - Length Overall inch7.09 in
Dimension - N inch0.62 in
Dimension - Outside Diameter inch1.50 in
Dimension - Pad Width inch2.19 in
Dimension - Strip Length inch3-1/16
Dimension - Z inch0.65 in
Physical Attribute - Tongue AngleStraight
Rating - KVA, Voltage Rating35 kV
Voltage - Maximum35000
Conductor - Copper DLO Size777 KCMIL
Conductor - Copper DLO Size Range777 kcmil
Conductor - Copper Flex G Size, Conductor - Copper Flex H Size, Conductor - Copper Flex I Size, Conductor - Copper Str Size, Conductor Size, Wire Size750 KCMIL
Conductor - Copper Flex G Size Range, Conductor - Copper Flex H Size Range, Conductor - Copper Flex I Size Range, Conductor - Copper Str Size Range750 kcmil
Conductor - Copper Flex K Size, Conductor - Copper Flex M Size750
Conductor TypeFLEX
Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Industry Standard(s)UL 486A-486B
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotYAZ442NTCFX11
gordonelectricsupply.comYAZ442NTCFX1-211 @ $918.54
usmegastore.comYAZ442NTCFX1-211 @ $148.60
Graybar99505413111 @ $100.03
Platt.com209711811
Crescent Electric Supply Co281158011
GalcoYAZ442NTCFX-BURN111 @ $200.17
