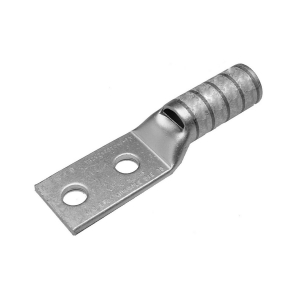

Burndy 25019236 Copper Compression Lug, 500 Kcmil YAZ362NTCFX. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Burndy . YAZ362NTCFX

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitinch
diameter, height, length1.19
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple1
MPN, SKUYAZ362NTCFX
qtyInStock0
snippetBurndy 25019236 Copper Compression Lug, 500 Kcmil YAZ362NTCFX. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width1.74
width_AttribDimension - Pad Width inch
ApplicationWire Termination
Color CodeBrown
Connector TypeLONG BARREL
Die Index20
Feature - Barrel StyleSkived
Feature - Barrel TypeLong
Finish TypeTin-Plated
Material, Conductor - MaterialCOPPER
Physical Attribute - Number of Holes2
PlatedY
Plating TypeTin
Trade NameHYLUG
TypeLong Barrel, Skive
Dimension - B Length fraction2-11/16 in
Dimension - B Length inch2.69 in
Dimension - Bolt Hole Size inch0.56 in
Dimension - Bolt Size fraction, Dimension - Hole Size fraction, Dimension - Stud Size fraction1/2
Dimension - Bolt Size inch0.5
Dimension - Hole Size inch0.56
Dimension - Hole Size mm14 mm
Dimension - L Length Overall mm166 mm
Dimension - Length Overall inch6.55 in
Dimension - N inch0.62 in
Dimension - Outside Diameter inch1.19 in
Dimension - Pad Width inch1.74 in
Dimension - Strip Length inch2-3/4
Dimension - Z inch0.65 in
Physical Attribute - Tongue AngleStraight
Rating - KVA, Voltage Rating35 kV
Voltage - Maximum35000
Conductor - Copper DLO Size444 KCMIL
Conductor - Copper DLO Size Range444 kcmil
Conductor - Copper Flex G Size, Conductor - Copper Flex H Size, Conductor - Copper Str Size, Conductor Size, Wire Size500 KCMIL
Conductor - Copper Flex G Size Range, Conductor - Copper Flex I Size, Conductor - Copper Flex K Size, Conductor - Copper Flex K Size Range, Conductor - Copper Flex M Size, Conductor - Copper Flex M Size Range450 kcmil
Conductor - Copper Flex H Size Range, Conductor - Copper Flex I Size Range, Conductor - Copper Str Size Range500 kcmil
Conductor TypeFLEX
Certification - CSA Approved, UL ListedYes
Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Industry Standard(s)UL 486A-486B
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotYAZ362NTCFX11
usmegastore.comYAZ362NTCFX1-211 @ $79.17
ZoroG10243815910101 @ $623.20
Graybar99505409111 @ $81.34
Platt.com138440311
Crescent Electric Supply Co243252511
GalcoYAZ362NTCFX-BURN111 @ $106.70
