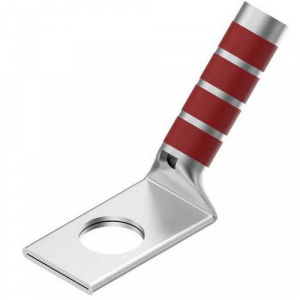

Order YAZ31TC3845 by Burndy 25020413 Cu Terminal, 1 Hole, (Pack of 10 pcs) - US Mega Store

Burndy . YAZ31TC3845

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YAZ31TC3845
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YAZ31TC3845 by Burndy 25020413 Cu Terminal, 1 Hole, (Pack of 10 pcs) - US Mega Store
diameter, length0.88
height2.51
height_AttribDimension - Height inch
length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty1, Physical Attribute - Number of Holes1
MPN, SKUYAZ31TC3845
qtyInStock-2
qtySourceFieldMap
snippet<p><strong>Burndy, YAZ31TC3845, 25020413 Cu Terminal, 1 Hole </strong> </p>
tierPrice136.08
width1.29
width_AttribDimension - Pad Width inch
Color CodeRed
Connector TypeTerminal
Die Index18;324
Feature - Barrel StyleSkived
Feature - Barrel TypeLong
Material, Conductor - MaterialCopper
PlatedYES
Plating TypeTin - Electro Plated
TypeLong Barrel, Skive, Tin Plated
Dimension - B Length inch2.00 in
Dimension - Bolt Hole Size inch0.39 in
Dimension - Bolt Size fraction, Dimension - Thread Size3/8
Dimension - Height inch2.51 in
Dimension - Hole Size inch0.40 in
Dimension - Hole Size mm10 mm
Dimension - L Length Overall mm78 mm
Dimension - Length Overall inch3.09 in
Dimension - N inch0.41 in
Dimension - Outside Diameter inch0.88 in
Dimension - Pad Width inch1.29 in
Dimension - Strip Length inch2-1/16
Dimension - Z inch0.42 in
Physical Attribute - Tongue Angle45 Degree
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper Str Navy Size350 (91) Navy
Conductor - Copper Str Size350 kcmil
Certification - CSA Approved, UL ListedYes
Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYAZ31TC38451-211 @ $36.08
