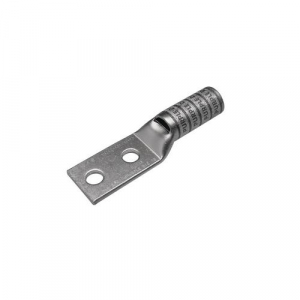

Order YAZ2C2TC516E7 by Burndy 50017332 Cu Compression Terminal, (Pack of 25 pcs) - US Mega Store

Burndy . YAZ2C2TC516E7

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YAZ2C2TC516E7
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YAZ2C2TC516E7 by Burndy 50017332 Cu Compression Terminal, (Pack of 25 pcs) - US Mega Store
moq, multiple, tierMinQty11
MPN, SKUYAZ2C2TC516E7
qtyInStock-2
qtySourceFieldMap
snippet<p><strong>Burndy, YAZ2C2TC516E7, 50017332 Cu Compression Terminal </strong> </p>
tierPrice115.39
width0.6
width_AttribDimension - Pad Width inch
Color CodeBrown
Connector TypeTerminal
Die Index10
Feature - Barrel StyleSkived
Feature - Barrel TypeLong
Material, Conductor - MaterialCopper
PlatedY
Plating TypeTin
Temperature Rating194
TypeLong Barrel, Skive, Tin Plated
Dimension - B Length inch1.25 in
Dimension - L Length Overall mm74 mm
Dimension - Length Overall inch2.91 in
Dimension - Pad Width inch0.60 in
Dimension - Strip Length inch1-5/16
Dimension - Stud Size inch5/16
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper Solid Size, Conductor - Copper Solid Size Range, Conductor - Copper Str Size, Conductor - Copper Str Size Range2 AWG
Conductor - Copper Str Navy Size, Conductor - Copper Str Navy Size Range60 (37) Navy
Certification - CSA Approved, UL ListedYes
Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM
