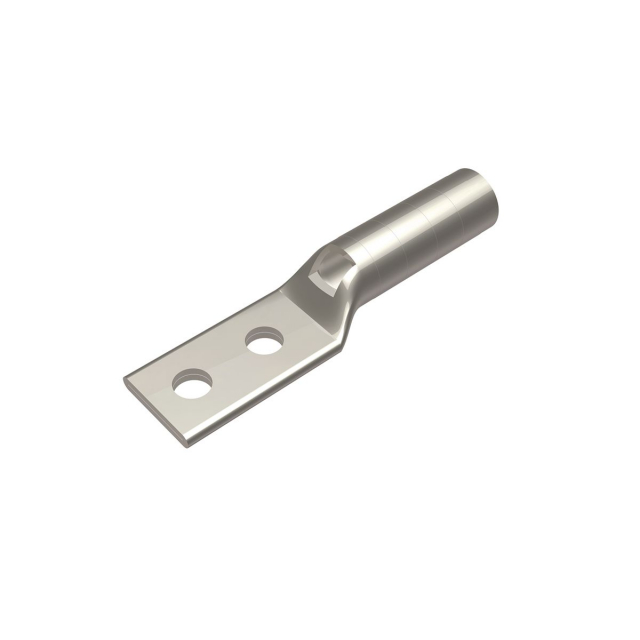

Burndy 25021789 Copper Compression Lug, 2 Hole YAZ2C2NT14E1. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Burndy . YAZ2C2NT14E1

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitinch
diameter, height, length0.42
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple1
MPN, SKUYAZ2C2NT14E1
qtyInStock0
snippetBurndy 25021789 Copper Compression Lug, 2 Hole YAZ2C2NT14E1. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width0.48
width_AttribDimension - Pad Width inch
ApplicationWire Termination
Color CodeBrown
Connector TypeLONG BARREL
Die Index10
Feature - Barrel StyleSkived
Feature - Barrel TypeLong
Finish TypeTin-Plated
Material, Conductor - MaterialCOPPER
Physical Attribute - Number of Holes2
PlatedY
Plating TypeTin - Electro Plated
Dimension - B Length fraction1-1/4 in
Dimension - B Length inch1.25 in
Dimension - Bolt Hole Size inch0.27 in
Dimension - Bolt Size fraction, Dimension - Hole Size fraction, Dimension - Stud Size fraction1/4
Dimension - Bolt Size inch0.25
Dimension - Hole Size inch0.27
Dimension - Hole Size mm6.9 mm
Dimension - L Length Overall mm82 mm
Dimension - Length Overall inch3.22 in
Dimension - N inch0.31 in
Dimension - Outside Diameter inch0.42 in
Dimension - Pad Width inch0.48 in
Dimension - Strip Length inch1-5/16
Dimension - Stud Size inch1/4 in
Dimension - Z inch0.34 in
Physical Attribute - Tongue AngleStraight
Rating - KVA, Voltage Rating35 kV
Voltage - Maximum35000
Conductor - Copper Solid Size, Conductor - Copper Str Size, Conductor - Copper Str Size Range, Conductor Size2 AWG
Conductor - Copper Str Navy Size60 (37) Navy
Conductor TypeCODE
Certification - CSA Approved, UL ListedYes
Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Industry Standard(s)UL 486A-486B
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotYAZ2C2NT14E111
usmegastore.comYAZ2C2NT14E11-211 @ $17.08
Platt.com209701011
GalcoYAZ2C2NT14E1-BURN10101 @ $23.02
