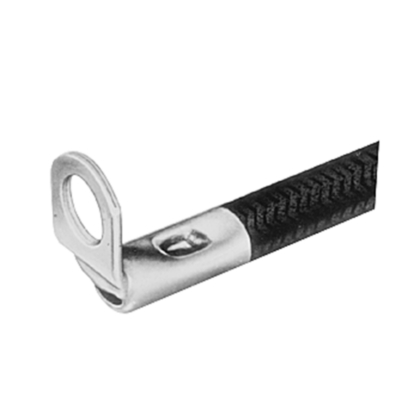

Burndy 610298 Cu Compression Right Angled Lug, #6 AWG YAV6CRS4. ✅$30 OFF Orders over $999 ✅. Save Now! ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Burndy . YAV6CRS4

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitinch
diameter, height, length0.32
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple, Physical Attribute - Number of Holes1
MPN, SKUYAV6CRS4
qtyInStock0
snippetBurndy 610298 Cu Compression Right Angled Lug, #6 AWG YAV6CRS4. ✅$30 OFF Orders over $999 ✅. Save Now! ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width0.59
width_AttribDimension - Pad Width inch
Connector TypeTerminal
Die Index39
Feature - Barrel StyleChamfered
Feature - Barrel TypeStandard
MaterialCopper
Physical Attribute - Tongue TypeRing
PlatedY
Plating TypeTin - Electro Plated
Trade NameHYLUG™
TypeRing Tongue
Dimension - B Length fraction1/2 in
Dimension - B Length inch0.50 in
Dimension - Bolt Hole Size inch0.33 in
Dimension - G inch0.89 in
Dimension - Hole Size mm8 mm
Dimension - L Length Overall mm25 mm
Dimension - Length Overall inch0.98 in
Dimension - N inch0.31 in
Dimension - Outside Diameter inch0.32 in
Dimension - Pad Width inch0.59 in
Dimension - Strip Length inch1/2
Dimension - Stud Size inch5/16
Dimension - Z inch0.34 in
Physical Attribute - Tongue Angle90 Degree
Conductor - Copper Str Aircraft SizeAN 6
Conductor - Copper Str Size, Conductor - Copper Str Size Range6
Certification - CSA Approved, Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM
UL ListedYes

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotYAV6CRS411
usmegastore.comYAV6CRS41-211 @ $2.51
Platt.com209691211
GalcoYAV6CRS4-BURN5005001 @ $4.14
