Order YAV4CL2NTCFX by Burndy 518638 Copper Compression Lug, 1/2", 2 Hole, (Pack of 100 pcs) - US Mega Store

Burndy . YAV4CL2NTCFX

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Connector Adapters
CategoryL3Burndy YAV4CL2NTCFX
ConditionNEW
DimensionUnitmm
Extra Product NameOrder YAV4CL2NTCFX by Burndy 518638 Copper Compression Lug, 1/2", 2 Hole, (Pack of 100 pcs) - US Mega Store
diameter, height9.652
height_AttribDimension - Outside Diameter inch
length98.0
length_AttribDimension - L Length Overall mm
moq, multiple, tierMinQty11
MPN, SKUYAV4CL2NTCFX
qtyInStock-2
qtySourceFieldMap

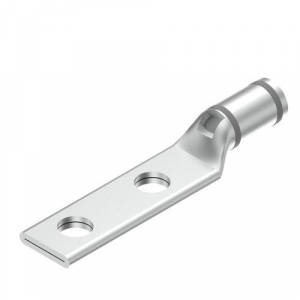

snippet<p>Copper Compression Lug, 2 Hole w/ Inspection Window, 4 Flex, 1/2 " Stud, 1.75in Stud Hole Spacing, Short Barrel, Tin Plated. </p>
tierPrice116.16
width21.081999999999997
width_AttribDimension - Pad Width inch
Color CodeGray
Connector TypeTerminal
Die Index8; 346
Feature - Barrel StyleChamfered
Feature - Barrel TypeStandard
Material, Conductor - MaterialCopper
Physical Attribute - Number of Holes2
Plated, Certification - CSA Approved, UL ListedYes
Plating TypeTin - Electro Plated
Trade NameHYLUG&trade;
TypeStandard Barrel, Tin Plated
Dimension - B Length inch, Dimension - Strip Length inch0.50 in
Dimension - Bolt Hole Size inch0.56in
Dimension - Hole Size inch0.56 in
Dimension - Hole Size mm14 mm
Dimension - L Length Overall mm98 mm
Dimension - Length Overall inch3.87 in
Dimension - N inch0.62 in
Dimension - Outside Diameter inch0.38 in
Dimension - Pad Width inch0.83 in
Dimension - Z inch0.65 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size5 (91/#24) DLO; 4 (105/#24) DLO
Conductor - Copper DLO Size Range, Conductor - Copper Flex G Size, Conductor - Copper Flex G Size Range, Conductor - Copper Flex H Size, Conductor - Copper Flex H Size Range, Conductor - Copper Flex I Size, Conductor - Copper Flex I Size Range, Conductor - Copper Flex K Size, Conductor - Copper Flex K Size Range, Conductor - Copper Flex M Size, Conductor - Copper Flex M Size Range, Conductor - Copper Solid Size, Conductor - Copper Str Size, Conductor - Copper Str Size Range4 AWG
Conductor - Copper Str Navy Size40 (19) Navy; 50 (19) Navy
Conductor - Copper Str Navy Size Range40 (19) Navy-50 (19) Navy
Conductor - CopperWeld Str Size4 A AWG; 4 D AWG; 4 N AWG; 4 P AWG
Conductor - CopperWeld Str Size Range4 A AWG-4 P AWG
Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Industry Standard(s)UL 486A-486B
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYAV4CL2NTCFX1-211 @ $16.16
ZoroG6024387581001001 @ $1514.00
