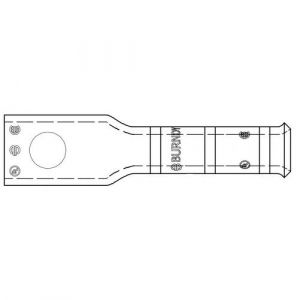

Burndy 10022597 Cu Compression Lug, 1 Hole, #2 AWG YAV2CTC38FX. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Burndy . YAV2CTC38FX

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitinch
diameter, height, length0.56
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple, Physical Attribute - Number of Holes1
MPN, SKUYAV2CTC38FX
qtyInStock0
snippetBurndy 10022597 Cu Compression Lug, 1 Hole, #2 AWG YAV2CTC38FX. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width0.76
width_AttribDimension - Pad Width inch
Color CodePink
Connector TypeTerminal
Die Index19
Feature - Barrel StyleChamfered
Feature - Barrel TypeStandard
MaterialCopper
PlatedY
Plating TypeTin - Electro Plated
Dimension - B Length fraction11/16 in
Dimension - B Length inch0.69 in
Dimension - Bolt Hole Size inch0.39 in
Dimension - D inch0.83 in
Dimension - L Length Overall mm49 mm
Dimension - Length Overall inch1.94 in
Dimension - N inch0.41 in
Dimension - Outside Diameter inch0.56 in
Dimension - Pad Width inch0.76 in
Dimension - Strip Length inch11/16
Dimension - Stud Size inch3/8
Dimension - Z inch0.42 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size, Conductor - Copper DLO Size Range2 (275/#24) DLO
Conductor - Copper Flex G Size, Conductor - Copper Flex G Size Range, Conductor - Copper Flex H Size, Conductor - Copper Flex H Size Range, Conductor - Copper Flex I Size, Conductor - Copper Flex I Size Range, Conductor - Copper Flex K Size, Conductor - Copper Flex K Size Range, Conductor - Copper Flex M Size, Conductor - Copper Flex M Size Range2 AWG
Certification - CSA Approved, UL ListedYes
Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotYAV2CTC38FX11
usmegastore.comYAV2CTC38FX1-211 @ $8.95
Graybar25629384111 @ $11.57
Platt.com209918611
Crescent Electric Supply Co198714911
GalcoYAV2CTC38FX-BURN111 @ $12.96
