Order YAV2C2TC14E2FXB by Burndy 518667 Cu Compression Terminal w/ Belled End, (Pack of 50 pcs) - US Mega Store

Burndy . YAV2C2TC14E2FXB

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Connector Adapters
CategoryL3Burndy YAV2C2TC14E2FXB
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YAV2C2TC14E2FXB by Burndy 518667 Cu Compression Terminal w/ Belled End, (Pack of 50 pcs) - US Mega Store
diameter, height, length0.46
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty11
MPN, SKUYAV2C2TC14E2FXB
qtyInStock-2
qtySourceFieldMap

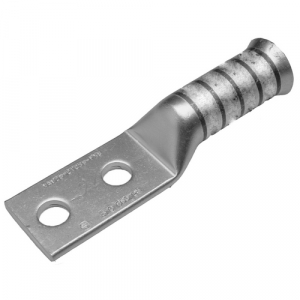

snippet<p>Two Hole Long barrel Cu Compression terminal with Belled End, #2 AWG Flex, 1/4 " stud, Tin plated. </p>
tierPrice119.54
width0.68
width_AttribDimension - Pad Width inch
Color CodeBrown
Connector TypeTerminal
Die Index10
Feature - Barrel StyleBelled
Feature - Barrel TypeLong
Material, Conductor - MaterialCopper
Physical Attribute - Number of Holes2
Physical Attribute - Tongue TypeStandard
PlatedY
Plating TypeTin - Electro Plated
Trade NameHYLUG&trade;
TypeLong Barrel, Tin Plated
Dimension - B Length fraction1-3/8 in
Dimension - B Length inch1.35 in
Dimension - Bolt Hole Size inch, Dimension - Hole Size inch0.27 in
Dimension - Hole Size mm7 mm
Dimension - L Length Overall mm80 mm
Dimension - Length Overall inch3.13 in
Dimension - N inch0.31 in
Dimension - Outside Diameter inch0.46 in
Dimension - P inch1.65 in
Dimension - Pad Width inch0.68 in
Dimension - Strip Length inch1-7/16
Dimension - Stud Size inch1/4
Dimension - Z inch0.33 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size3 (125/#24) DLO; 2 (150/#24) DLO
Conductor - Copper DLO Size Range, Conductor - Copper Flex G Size, Conductor - Copper Flex G Size Range, Conductor - Copper Flex H Size, Conductor - Copper Flex H Size Range, Conductor - Copper Flex I Size, Conductor - Copper Flex I Size Range, Conductor - Copper Flex K Size, Conductor - Copper Flex K Size Range, Conductor - Copper Flex M Size, Conductor - Copper Solid Size, Conductor - Copper Str Size, Conductor - Copper Str Size Range2 AWG
Conductor - Copper Str Navy Size Range60 (37) Navy
Certification - CSA Approved, UL ListedYes
Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Industry Standard(s)UL 486A-486B
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYAV2C2TC14E2FXB1-211 @ $19.54
