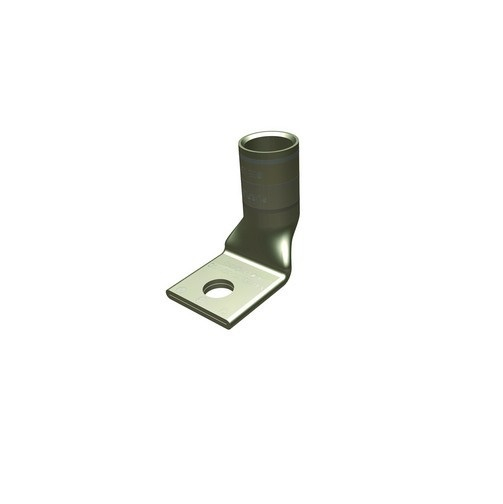

Burndy 518546 Copper Compression Lug, #6 AWG YAV6CLTC14FX90. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Burndy . YAV6CLTC14FX90

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitmm
height22.86
height_AttribDimension - Height inch
length22.0
length_AttribDimension - L Length Overall mm
moq, multiple, Physical Attribute - Number of Holes1
MPN, SKUYAV6CLTC14FX90
qtyInStock0
snippetBurndy 518546 Copper Compression Lug, #6 AWG YAV6CLTC14FX90. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width12.191999999999998
width_AttribDimension - Pad Width inch
Color CodeBlue
Connector TypeTerminal
Die Index7 or 374
Feature - Barrel Type, Physical Attribute - Tongue TypeStandard
Material, Conductor - MaterialCopper
PlatedY
Plating TypeTin - Electro Plated
Trade NameHYLUG™
TypeStandard Barrel, Tin Plated
Dimension - B Length fraction, Dimension - Strip Length inch1/2 in
Dimension - B Length inch0.50 in
Dimension - Bolt Hole Size inch, Dimension - Hole Size inch0.27 in
Dimension - Height inch0.90 in
Dimension - Hole Size mm7 mm
Dimension - L Length Overall mm22 mm
Dimension - Length Overall inch0.88 in
Dimension - N inch, Dimension - Outside Diameter inch0.31 in
Dimension - Pad Width inch0.48 in
Dimension - Z inch0.33 in
Physical Attribute - Tongue Angle90 Degree
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size, Conductor - Copper DLO Size Range6 (61/24) DLO
Conductor - Copper Flex G Size, Conductor - Copper Flex G Size Range, Conductor - Copper Flex H Size, Conductor - Copper Flex H Size Range, Conductor - Copper Flex I Size, Conductor - Copper Flex I Size Range, Conductor - Copper Flex K Size, Conductor - Copper Flex K Size Range, Conductor - Copper Flex M Size, Conductor - Copper Flex M Size Range, Conductor - Copper Solid Size, Conductor - Copper Solid Size Range6 AWG
Conductor - Copper Str Navy Size, Conductor - Copper Str Navy Size Range30 Navy
Conductor - Copper Str Size, Conductor - Copper Str Size Range16 mm²
Certification - CSA Approved, UL ListedYes
Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotYAV6CLTC14FX9011
ZoroG066540320201 @ $4.90
Allied Electronics7199829511
Crescent Electric Supply CoYAV6CLTC14FX9011
usmegastore.comYAV6CLTC14FX901-211 @ $5.58
Graybar96086954111 @ $277.83
Platt.com209690811
GalcoYAV6CLTC14FX90-BURN10101 @ $7.55
us.rs-online.com719982951811 @ $6.25
