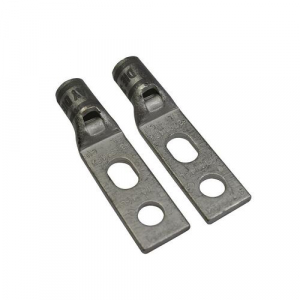

Order YAV6CL2TC10FX90SL by Burndy 25016827 Copper Compression Lug, 2 Hole, (Pack of 100 pcs) - US Mega Store

Burndy . YAV6CL2TC10FX90SL

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YAV6CL2TC10FX90SL
ConditionNEW
DimensionUnitmm
Extra Product NameOrder YAV6CL2TC10FX90SL by Burndy 25016827 Copper Compression Lug, 2 Hole, (Pack of 100 pcs) - US Mega Store
diameter, height7.874
height_AttribDimension - Outside Diameter inch
length39.0
length_AttribDimension - L Length Overall mm
moq, multiple, tierMinQty11
MPN, SKUYAV6CL2TC10FX90SL
qtyInStock-2
qtySourceFieldMap
snippet<p><strong>Burndy, YAV6CL2TC10FX90SL, 25016827 Copper Compression Lug, 2 Hole </strong> </p>
tierPrice118.9
width12.191999999999998
width_AttribDimension - Pad Width inch
Color CodeBlue
Connector TypeTerminal
Die Index7;374
Feature - Barrel Type, Physical Attribute - Tongue TypeStandard
Material, Conductor - MaterialCopper
Physical Attribute - Number of Holes2
PlatedY
Plating TypeTin - Electro Plated
TypeStandard Barrel, Tin Plated
Dimension - B Length fraction, Dimension - Strip Length inch1/2 in
Dimension - B Length inch0.50 in
Dimension - Bolt Hole Size inch, Dimension - Hole Size inch0.21 in
Dimension - Hole Size mm5 mm
Dimension - L Length Overall mm39 mm
Dimension - Length Overall inch1.54 in
Dimension - N inch0.25 in
Dimension - Outside Diameter inch0.31 in
Dimension - Pad Width inch0.48 in
Dimension - Stud Size inch#10
Dimension - Z inch0.28 in
Physical Attribute - Tongue Angle90 Degree
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size6 (61/24) DLO
Conductor - Copper DLO Size Range, Conductor - Copper Flex G Size, Conductor - Copper Flex G Size Range, Conductor - Copper Flex H Size, Conductor - Copper Flex H Size Range, Conductor - Copper Flex I Size, Conductor - Copper Flex I Size Range, Conductor - Copper Flex K Size, Conductor - Copper Flex K Size Range, Conductor - Copper Flex M Size, Conductor - Copper Flex M Size Range, Conductor - Copper Solid Size, Conductor - Copper Solid Size Range, Conductor - Copper Str Size, Conductor - Copper Str Size Range, Conductor - CopperWeld C Solid Size, Conductor - CopperWeld Solid Size Range6 AWG
Conductor - Copper Str Navy Size, Conductor - Copper Str Navy Size Range30 Navy
Conductor - CopperWeld Str Size, Conductor - CopperWeld Str Size Range#6 WELD (61/24)
Certification - CSA Approved, Certification - ETL, Certification - UL Recognized, Certification - cULus, UL ListedNo
Industry Standard(s)UL 486A-486B
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYAV6CL2TC10FX90SL1-211 @ $18.90
