Order YAV3C2NFXB by Burndy 10015478 Cu Compression Terminal w/ Belled End, (Pack of 25 pcs) - US Mega Store

Burndy . YAV3C2NFXB

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Connector Adapters
CategoryL3Burndy YAV3C2NFXB
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YAV3C2NFXB by Burndy 10015478 Cu Compression Terminal w/ Belled End, (Pack of 25 pcs) - US Mega Store
diameter, height, length0.42
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty11
MPN, SKUYAV3C2NFXB
qtyInStock-2
qtySourceFieldMap

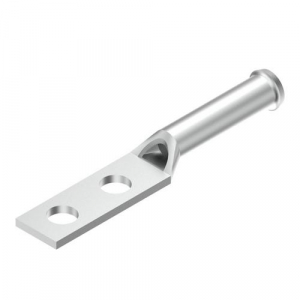

snippet<p>Two Hole Long Barrel Cu Compression terminal with Belled End, Without Inspection Window, 3 Flex AWG, Tin plated. </p>
tierPrice137.9
width0.83
width_AttribDimension - Pad Width inch
Color CodeWhite
Connector TypeTerminal
Die Index9
Feature - Barrel StyleBelled
Feature - Barrel TypeLong
Material, Conductor - MaterialCopper
Physical Attribute - Number of Holes2
PlatedY
Plating TypeTin - Electro Plated
Temperature Rating194
Trade NameHYLUG&trade;
TypeLong Barrel, Tin Plated
Dimension - B Length fraction1-1/2 in
Dimension - B Length inch1.48 in
Dimension - Bolt Hole Size inch0.52 in
Dimension - Bolt Size fraction, Dimension - Stud Size inch, Dimension - Thread Size1/2
Dimension - D inch3.01 in
Dimension - Hole Size inch0.56 in
Dimension - Hole Size mm14 mm
Dimension - L Length Overall mm123 mm
Dimension - Length Overall inch4.83 in
Dimension - N inch0.62 in
Dimension - Outside Diameter inch0.42 in
Dimension - P inch1.73 in
Dimension - Pad Width inch0.83 in
Dimension - Strip Length inch1-9/16
Dimension - Z inch0.64 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size4 (105/#24) DLO; 3 (125/#24) DLO
Conductor - Copper DLO Size Range, Conductor - Copper Flex G Size, Conductor - Copper Flex G Size Range, Conductor - Copper Flex H Size, Conductor - Copper Flex H Size Range, Conductor - Copper Flex I Size, Conductor - Copper Flex I Size Range, Conductor - Copper Flex K Size, Conductor - Copper Flex K Size Range, Conductor - Copper Flex M Size, Conductor - Copper Flex M Size Range, Conductor - Copper Solid Size, Conductor - Copper Solid Size Range, Conductor - Copper Str Size, Conductor - Copper Str Size Range3 AWG
Certification - CSA Approved, UL ListedYes
Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Industry Standard(s)UL 486A-486B
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYAV3C2NFXB1-211 @ $37.90
