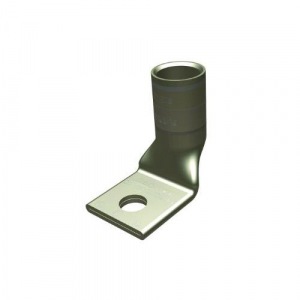

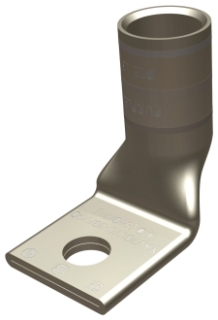

Burndy 518483 Copper Compression Lug, #2 AWG YAV2CLTC38FX90. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Burndy . YAV2CLTC38FX90

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitinch
diameter, height, length0.56
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple, Physical Attribute - Number of Holes1
MPN, SKUYAV2CLTC38FX90
qtyInStock0
snippetBurndy 518483 Copper Compression Lug, #2 AWG YAV2CLTC38FX90. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width0.83
width_AttribDimension - Pad Width inch
Color CodePink
Connector TypeTerminal
Die Index12
Feature - Barrel Type, Physical Attribute - Tongue TypeStandard
Material, Conductor - MaterialCopper
PlatedY
Plating TypeTin
Temperature Rating194
Dimension - B Length fraction11/16 in
Dimension - B Length inch0.69 in
Dimension - Bolt Hole Size inch, Dimension - Hole Size inch0.40 in
Dimension - Hole Size mm10 mm
Dimension - L Length Overall mm75 mm
Dimension - Length Overall inch2.95 in
Dimension - N inch0.41 in
Dimension - Outside Diameter inch0.56 in
Dimension - Pad Width inch0.83 in
Dimension - Strip Length inch11/16
Dimension - Z inch0.43 in
Physical Attribute - Tongue Angle90 Degree
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size, Conductor - Copper DLO Size Range2 (275/#24) DLO
Conductor - Copper Flex G Size, Conductor - Copper Flex G Size Range, Conductor - Copper Flex H Size, Conductor - Copper Flex H Size Range, Conductor - Copper Flex I Size, Conductor - Copper Flex I Size Range, Conductor - Copper Flex K Size, Conductor - Copper Flex K Size Range, Conductor - Copper Flex M Size, Conductor - Copper Flex M Size Range2 AWG
Conductor - Copper Str Navy Size, Conductor - Copper Str Navy Size Range100 Navy
Conductor - Copper Str Size, Conductor - Copper Str Size Range2
Conductor - CopperWeld Str Size, Conductor - CopperWeld Str Size Range2 WELD
Certification - CSA Approved, UL ListedYes
Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotYAV2CLTC38FX9011
usmegastore.comYAV2CLTC38FX901-211 @ $11.26
Graybar99686473111 @ $5.45
gordonelectricsupply.comYAV2CLTC38FX901-211 @ $13.27
Platt.com209918511
GalcoYAV2CLTC38FX90-BURN111 @ $17.22
Crescent Electric Supply Co202463711
