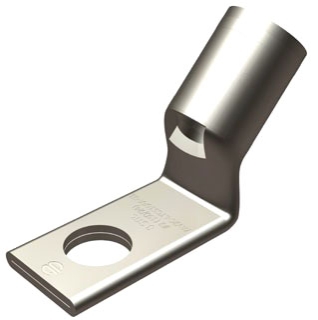

Burndy 518482 Copper Compression Lug, #2 AWG YAV2CLTC38FX45. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Burndy . YAV2CLTC38FX45

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitinch
diameter, length0.46
height1.07
height_AttribDimension - Height inch
length_AttribDimension - Outside Diameter inch
moq, multiple, Physical Attribute - Number of Holes1
MPN, SKUYAV2CLTC38FX45
qtyInStock0
snippetBurndy 518482 Copper Compression Lug, #2 AWG YAV2CLTC38FX45. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width0.73
width_AttribDimension - Pad Width inch
Color CodeBrown
Connector TypeTerminal
Die Index10
Feature - Barrel StyleChamfered
Feature - Barrel TypeStandard
Material, Conductor - MaterialCopper
PlatedY
Plating TypeTin - Electro Plated
TypeStandard Barrel, Tin Plated
Dimension - B Length fraction5/8 in
Dimension - B Length inch0.63 in
Dimension - Bolt Hole Size inch0.52 in
Dimension - Height inch1.07 in
Dimension - Hole Size inch, Dimension - N inch0.53 in
Dimension - Hole Size mm13 mm
Dimension - L Length Overall mm52 mm
Dimension - Length Overall inch2.03 in
Dimension - Outside Diameter inch0.46 in
Dimension - Pad Width inch0.73 in
Dimension - Strip Length inch11/16
Dimension - Z inch0.55 in
Physical Attribute - Tongue Angle45 Degree
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size3 (125/#24) DLO;2 (150/#24) DLO
Conductor - Copper Flex G Size, Conductor - Copper Flex H Size, Conductor - Copper Flex I Size, Conductor - Copper Flex K Size, Conductor - Copper Flex M Size, Conductor - Copper Solid Size, Conductor - Copper Str Size2 AWG
Conductor - Copper Str Navy Size60 (37) Navy
Conductor - CopperWeld Str Size2 A AWG;2 F AWG;2 G AWG;2 J AWG;2 K AWG;2 N AWG;2 P AWG
Certification - CSA Approved, UL ListedYes
Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM
