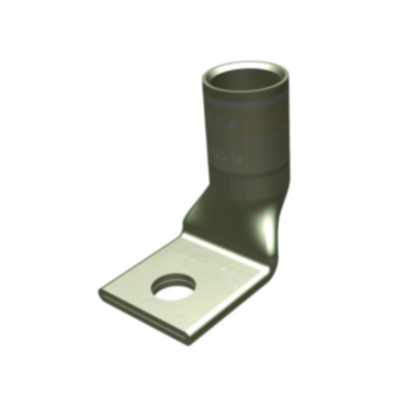

Order YAV2CLTC12FX90 by Burndy 26001759 Cu Tubing Compression Terminal, 1/2", (Pack of 25 pcs) - US Mega Store

Burndy . YAV2CLTC12FX90

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Connector Adapters
CategoryL3Burndy YAV2CLTC12FX90
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YAV2CLTC12FX90 by Burndy 26001759 Cu Tubing Compression Terminal, 1/2", (Pack of 25 pcs) - US Mega Store
diameter, length0.46
height1.17
height_AttribDimension - Height inch
length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty1, Physical Attribute - Number of Holes1
MPN, SKUYAV2CLTC12FX90
qtyInStock-2
qtySourceFieldMap
snippet<p>Cu Tubing Hylug; 1 Hole with Inspection Window; #2 WELD, 3(125/#24)-2(150/#24) DLO, #2 AWG Code, 60 Navy; 600V-35kV; 1/2 " stud; Compression; 0.53 in BCD. </p>
tierPrice121.54
width0.73
width_AttribDimension - Pad Width inch
Color CodeBrown
Connector TypeTerminal
Die Index10
Feature - Barrel StyleChamfered
Feature - Barrel TypeStandard
Material, Conductor - MaterialCopper
PlatedY
Plating TypeTin - Electro Plated
Trade NameHYLUG&trade;
TypeStandard Barrel, Tin Plated
Dimension - B Length fraction5/8 in
Dimension - B Length inch0.63 in
Dimension - Bolt Hole Size inch0.52 in
Dimension - Height inch1.17 in
Dimension - Hole Size inch, Dimension - N inch0.53 in
Dimension - Hole Size mm13 mm
Dimension - L Length Overall mm36 mm
Dimension - Length Overall inch1.40 in
Dimension - Outside Diameter inch0.46 in
Dimension - Pad Width inch0.73 in
Dimension - Strip Length inch11/16
Dimension - Z inch0.55 in
Physical Attribute - Tongue Angle90 Degree
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size3 (125/#24) DLO; 2 (150/#24) DLO
Conductor - Copper DLO Size Range, Conductor - Copper Flex G Size, Conductor - Copper Flex G Size Range, Conductor - Copper Flex H Size, Conductor - Copper Flex H Size Range, Conductor - Copper Flex I Size, Conductor - Copper Flex I Size Range, Conductor - Copper Flex K Size, Conductor - Copper Flex K Size Range, Conductor - Copper Flex M Size, Conductor - Copper Solid Size, Conductor - Copper Str Size, Conductor - Copper Str Size Range2 AWG
Conductor - Copper Str Navy Size, Conductor - Copper Str Navy Size Range60 (37) Navy
Conductor - CopperWeld Str Size2 A AWG; 2 F AWG; 2 G AWG; 2 J AWG; 2 K AWG; 2 N AWG; 2 P AWG
Certification - CSA Approved, UL ListedYes
Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Industry Standard(s)UL 486A-486B
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYAV2CLTC12FX901-211 @ $21.54
ZoroG10243783125251 @ $251.75
Platt.com209918211
GalcoYAV2CLTC12FX90-BURN25251 @ $18.67
