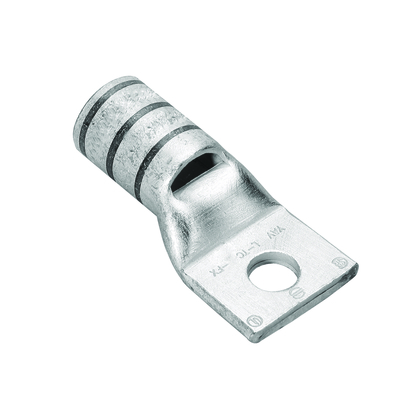

Burndy 610080 Copper Compression Lug, 1 Hole, #2 AWG YAV2CLNK. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Burndy . YAV2CLNK

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitinch
diameter, height0.56
height_AttribDimension - Outside Diameter inch
length2.03
length_AttribDimension - Length Overall inch
moq, multiple, Physical Attribute - Number of Holes1
MPN, SKUYAV2CLNK
qtyInStock0
snippetBurndy 610080 Copper Compression Lug, 1 Hole, #2 AWG YAV2CLNK. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width0.83
width_AttribDimension - Pad Width inch
Connector TypeTerminal
Die Index43
Feature - Barrel TypeStandard
MaterialCopper
Military SpecificationMS20659
Physical Attribute - Tongue TypeRing
PlatedY
Plating TypeNickel
Dimension - B Length fraction, Dimension - Strip Length inch11/16 in
Dimension - B Length inch0.66 in
Dimension - Bolt Hole Size inch0.39 in
Dimension - D inch0.85 in
Dimension - Hole Size mm10 mm
Dimension - Length Overall inch2.03 in
Dimension - N inch0.42 in
Dimension - Outside Diameter inch0.56 in
Dimension - Pad Width inch0.83 in
Dimension - Stud Size inch3/8
Dimension - Z inch0.43 in
Physical Attribute - Tongue AngleStraight
Conductor - Copper Str Aircraft Size, Conductor - Copper Str Aircraft Size RangeAN 0
Conductor - Copper Str Size, Conductor - Copper Str Size Range2 AWG
Certification - CSA Approved, UL ListedYes
Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotYAV2CLNK11
Allied Electronics7173119511
gordonelectricsupply.comYAV2CLNK1-211 @ $2182.00
usmegastore.comYAV2CLNK1-211 @ $9.72
Platt.com153282811
GalcoYAV2CLNK-BURN111 @ $13.09
us.rs-online.com71731195111 @ $12.00, 5 @ $11.58, 10 @ $11.34, 25 @ $11.10, 50 @ $10.86, 100 @ $10.63
