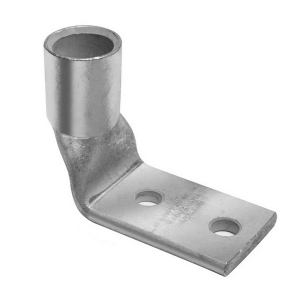

Burndy 518214 Copper Compression Lug, 4/0 AWG YAV28L2TC38FX90. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Burndy . YAV28L2TC38FX90

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitinch
diameter, height, length0.56
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple1
MPN, SKUYAV28L2TC38FX90
qtyInStock0
snippetBurndy 518214 Copper Compression Lug, 4/0 AWG YAV28L2TC38FX90. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width0.83
width_AttribDimension - Pad Width inch
Color CodePink
Connector TypeTerminal
Die Index12
Feature - Barrel Type, Physical Attribute - Tongue TypeStandard
Material, Conductor - MaterialCopper
Physical Attribute - Number of Holes2
PlatedY
Plating TypeTin
Temperature Rating194
Dimension - B Length fraction11/16 in
Dimension - B Length inch0.69 in
Dimension - Bolt Hole Size inch, Dimension - Hole Size inch0.40 in
Dimension - Hole Size mm10 mm
Dimension - L Length Overall mm75 mm
Dimension - Length Overall inch2.95 in
Dimension - N inch0.41 in
Dimension - Outside Diameter inch0.56 in
Dimension - Pad Width inch0.83 in
Dimension - Strip Length inch11/16
Dimension - Z inch0.43 in
Physical Attribute - Tongue Angle90 Degree
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size, Conductor - Copper DLO Size Range4/0 (275/#24) DLO
Conductor - Copper Flex G Size, Conductor - Copper Flex G Size Range, Conductor - Copper Flex H Size, Conductor - Copper Flex H Size Range, Conductor - Copper Flex I Size, Conductor - Copper Flex I Size Range, Conductor - Copper Flex K Size, Conductor - Copper Flex K Size Range, Conductor - Copper Flex M Size, Conductor - Copper Flex M Size Range4/0 AWG
Conductor - Copper Str Navy Size, Conductor - Copper Str Navy Size Range100 Navy
Conductor - Copper Str Size, Conductor - Copper Str Size Range4/0
Conductor - CopperWeld Str Size, Conductor - CopperWeld Str Size Range4/0 WELD
Certification - CSA Approved, UL ListedYes
Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotYAV28L2TC38FX9011
ZoroG0563982551 @ $103.60
usmegastore.comYAV28L2TC38FX901-211 @ $27.47
Graybar90013303111 @ $33.64
Crescent Electric Supply Co198414311
Platt.com209915611
Crescent Electric Supply CoYAV28L2TC38FX9011
GalcoYAV28L2TC38FX90-BURN25251 @ $44.13
