Order YAV28L13NK by Burndy 610335 Cu Tubing Compression Terminal, (Pack of 100 pcs) - US Mega Store

Burndy . YAV28L13NK

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Connector Adapters
CategoryL3Burndy YAV28L13NK
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YAV28L13NK by Burndy 610335 Cu Tubing Compression Terminal, (Pack of 100 pcs) - US Mega Store
moq, multiple, tierMinQty1, Physical Attribute - Number of Holes1
MPN, SKUYAV28L13NK
qtyInStock-2
qtySourceFieldMap

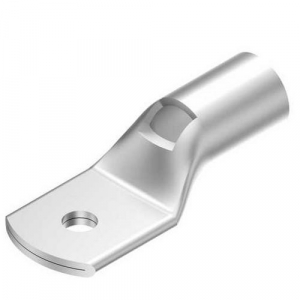

snippet<p>Cu tubing Compression Terminal, 1 Hole W/Insp Window, AN-4/0, 5/8 " Stud, Nickel Plated. </p>
tierPrice126.62
width1.12
width_AttribDimension - Pad Width inch
Connector TypeTerminal
Die Index46
Feature - Barrel StyleChamfered
Feature - Barrel TypeStandard
Material, Conductor - MaterialCopper
Physical Attribute - Tongue TypeRing
PlatedY
Plating TypeNickel
Temperature Rating194
Trade NameHYLUG&trade;
TypeStandard Barrel, Nickel Plated
Dimension - B Length fraction7/8 in
Dimension - B Length inch0.85 in
Dimension - Bolt Hole Size inch, Dimension - Hole Size inch0.66 in
Dimension - Bolt Size fraction5/8
Dimension - D inch1.16 in
Dimension - Hole Size mm17 mm
Dimension - L Length Overall mm69 mm
Dimension - Length Overall inch2.72 in
Dimension - N inch0.56 in
Dimension - Pad Width inch1.12 in
Dimension - Strip Length inch7/8
Dimension - Thread Size5/8 in
Dimension - Z inch0.60 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper Str Aircraft Size, Conductor - Copper Str Aircraft Size RangeAN 0000
Certification - CSA Approved, Certification - ETL, Certification - UL Recognized, Certification - cULus, UL ListedNo
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYAV28L13NK1-211 @ $26.62
