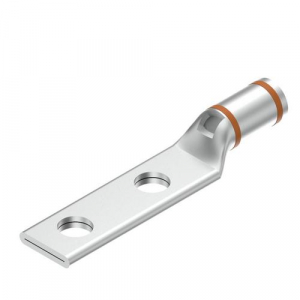

Order YAV27L2TC516FX by Burndy 10028125 Cu Compression Terminal, 2 Holes, (Pack of 50 pcs) - US Mega Store

Burndy . YAV27L2TC516FX

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Connector Adapters
CategoryL3Burndy YAV27L2TC516FX
ConditionNEW
DimensionUnitmm
Extra Product NameOrder YAV27L2TC516FX by Burndy 10028125 Cu Compression Terminal, 2 Holes, (Pack of 50 pcs) - US Mega Store
diameter, height17.779999999999998
height_AttribDimension - Outside Diameter inch
length82.0
length_AttribDimension - L Length Overall mm
moq, multiple, tierMinQty11
MPN, SKUYAV27L2TC516FX
qtyInStock-2
qtySourceFieldMap
snippet<p>Cu Compression Terminal, 2 Holes W/Insp Window, 3/0 Weld, 3/0(450/#24)DLO, 3/0 AWG Code, 150 Navy, 5/16 " Stud, 1.00 " Spacing, Standard Barrel. </p>
tierPrice120.69
width26.162
width_AttribDimension - Pad Width inch
Color CodeOrange
Connector TypeTerminal
Die Index14
Feature - Barrel StyleChamfered
Feature - Barrel Type, Physical Attribute - Tongue TypeStandard
Material, Conductor - MaterialCopper
Physical Attribute - Number of Holes2
PlatedY
Plating TypeTin
Trade NameHYLUG&trade;
TypeStandard Barrel, Tin Plated
Dimension - B Length inch1.00 in
Dimension - Bolt Size fraction5/16
Dimension - Hole Size inch0.33 in
Dimension - Hole Size mm8 mm
Dimension - L Length Overall mm82 mm
Dimension - Length Overall inch3.22 in
Dimension - N inch0.34 in
Dimension - Outside Diameter inch0.70 in
Dimension - Pad Width inch1.03 in
Dimension - Strip Length inch1 in
Dimension - Z inch0.36 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size3/0 (450/#24) DLO
Conductor - Copper DLO Size Range, Conductor - Copper Flex G Size, Conductor - Copper Flex G Size Range, Conductor - Copper Flex H Size, Conductor - Copper Flex H Size Range, Conductor - Copper Flex I Size, Conductor - Copper Flex I Size Range, Conductor - Copper Flex K Size, Conductor - Copper Flex K Size Range, Conductor - Copper Flex M Size, Conductor - Copper Str Size Range3/0 AWG
Conductor - Copper Str Navy Size150 Navy
Conductor - Copper Str Size8 AWG
Conductor - CopperWeld Str Size3/0 E AWG; 3/0 EK AWG; 3/0 F AWG; 3/0 G AWG; 3/0 J AWG; 3/0 V AWG
Certification - CSA Approved, UL ListedYes
Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Industry Standard(s)UL 486A-486B
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYAV27L2TC516FX1-211 @ $20.69
