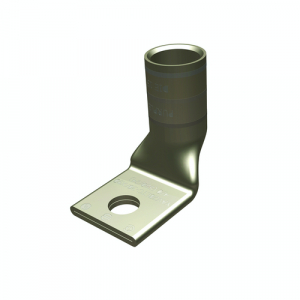

Order YAV26LTC14FX90 by Burndy Tubing Compression Lug, 1 Hole, 1/4" Stud - US Mega Store

Burndy . YAV26LTC14FX90

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YAV26LTC14FX90
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YAV26LTC14FX90 by Burndy Tubing Compression Lug, 1 Hole, 1/4" Stud - US Mega Store
diameter, height, length0.63
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty1, Physical Attribute - Number of Holes1
MPN, SKUYAV26LTC14FX90
qtyInStockBackordered
snippet<p>Cu Tubing Hylug; 1 Hole with Inspection Window; 2/0 WELD, 325/24 DLO, 2/0 AWG Code, 125 Navy; 600V-35kV; 1/4" stud; Standard; Compression; 0.27 in BCD; Black </p>
tierPrice114.88
width0.93
width_AttribDimension - Pad Width inch
Color CodeBlack
Connector TypeTerminal
Die Index13
Feature - Barrel StyleChamfered
Feature - Barrel Type, Physical Attribute - Tongue TypeStandard
Material, Conductor - MaterialCopper
Plated, UL ListedYes
Plating TypeTin - Electro Plated
TypeStandard Barrel, Tin Plated
Dimension - B Length inch0.81 in
Dimension - Bolt Hole Size inch, Dimension - Hole Size inch0.27 in
Dimension - Bolt Size fraction1/4
Dimension - Hole Size mm7 mm
Dimension - L Length Overall mm27 mm
Dimension - Length Overall inch1.07 in
Dimension - N inch0.31 in
Dimension - Outside Diameter inch0.63 in
Dimension - Pad Width inch0.93 in
Dimension - Strip Length inch13/16
Dimension - Z inch0.33 in
Physical Attribute - Tongue Angle90 Degree
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size2/0 (325/#24) DLO
Conductor - Copper Flex G Size, Conductor - Copper Flex H Size, Conductor - Copper Flex I Size, Conductor - Copper Flex K Size, Conductor - Copper Flex M Size, Conductor - Copper Str Size2/0 AWG
Conductor - Copper Str Navy Size125 (61) Navy
Conductor - CopperWeld Str Size2/0 F AWG;2/0 G AWG;2/0 J AWG;2/0 K AWG;2/0 V AWG
Certification - CSA Approved, Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYAV26LTC14FX901Backordered11 @ $14.88
