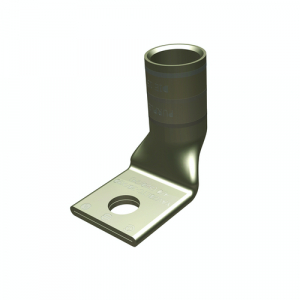

Order YAV26LTC12FX90 by Burndy Tubing Compression Lug, 1 Hole, 1/2" Stud, (Pack of 25 pcs) - US Mega Store

Burndy . YAV26LTC12FX90

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YAV26LTC12FX90
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YAV26LTC12FX90 by Burndy Tubing Compression Lug, 1 Hole, 1/2" Stud, (Pack of 25 pcs) - US Mega Store
diameter, height, length0.63
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty1, Physical Attribute - Number of Holes1
MPN, SKUYAV26LTC12FX90
qtyInStock-2
qtySourceFieldMap
snippet<p>HYLUG 1 Hole with Inspection Window; 2/0 WELD, 325/24 DLO, 2/0 AWG Code, 125 Navy; 600V-35kV; 1/2" stud; Compression, 90 degree bend </p>
tierPrice118.73
width0.93
width_AttribDimension - Pad Width inch
Color CodeBlack
Connector TypeTerminal
Die Index13
Feature - Barrel StyleChamfered
Feature - Barrel Type, Physical Attribute - Tongue TypeStandard
Material, Conductor - MaterialCopper
Plated, UL ListedYes
Plating TypeTin - Electro Plated
TypeStandard Barrel, Tin Plated
Dimension - B Length inch0.81 in
Dimension - Bolt Hole Size inch, Dimension - Hole Size inch, Dimension - N inch0.53 in
Dimension - Bolt Size fraction1/2
Dimension - Hole Size mm13 mm
Dimension - L Length Overall mm38 mm
Dimension - Length Overall inch1.51 in
Dimension - Outside Diameter inch0.63 in
Dimension - Pad Width inch0.93 in
Dimension - Strip Length inch13/16
Dimension - Z inch0.55 in
Physical Attribute - Tongue Angle90 Degree
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size2/0 (325/#24) DLO
Conductor - Copper Flex G Size, Conductor - Copper Flex H Size, Conductor - Copper Flex I Size, Conductor - Copper Flex K Size, Conductor - Copper Flex M Size, Conductor - Copper Str Size2/0 AWG
Conductor - Copper Str Navy Size125 (61) Navy
Conductor - CopperWeld Str Size2/0 F AWG;2/0 G AWG;2/0 J AWG;2/0 K AWG;2/0 V AWG
Certification - CSA Approved, Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYAV26LTC12FX901-211 @ $18.73
Graybar98412828111 @ $19.43
GalcoYAV26LTC12FX90-BURN111 @ $0.00
