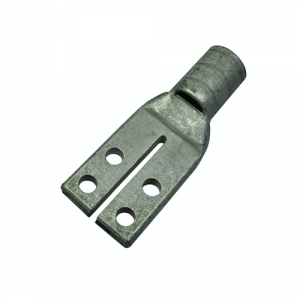

Order YAV26L4TC14FXG1 by Burndy Compression Lug, 1/4" Stud, 600V to 35kV, (Pack of 10 pcs) - US Mega Store

Burndy . YAV26L4TC14FXG1

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YAV26L4TC14FXG1
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YAV26L4TC14FXG1 by Burndy Compression Lug, 1/4" Stud, 600V to 35kV, (Pack of 10 pcs) - US Mega Store
diameter, height, length0.51
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty11
MPN, SKUYAV26L4TC14FXG1
qtyInStock-2
qtySourceFieldMap
snippet<p>Cu Hylug; 4 Holes; 2/0 (375/#24) DLO,125 Navy; 600V-35kV; 1/4" stud; Standard; Compression; 0.28 in BCD; Black </p>
tierPrice1154.9
width1.38
width_AttribDimension - Pad Width inch
Color CodeBlack
Connector TypeTerminal
Die Index13
Feature - Barrel StyleChamfered
Feature - Barrel TypeStandard
Material, Conductor - MaterialCopper
Physical Attribute - Number of Holes4
PlatedY
Plating TypeTin
TypeStandard Barrel, Tin Plated
Dimension - B Length fraction13/16 in
Dimension - B Length inch0.81 in
Dimension - Bolt Hole Size inch0.27 in
Dimension - Bolt Size fraction, Dimension - Stud Size inch1/4
Dimension - F Width Center to Center inch0.62 in
Dimension - Hole Size inch0.28 in
Dimension - Hole Size mm7 mm
Dimension - L Length Overall mm78 mm
Dimension - Length Overall inch3.07 in
Dimension - N inch0.31 in
Dimension - Outside Diameter inch0.51 in
Dimension - Pad Width inch1.38 in
Dimension - Strip Length inch1-1/16
Dimension - Z inch0.83 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size2/0 (375/#24) DLO
Conductor - Copper Flex G Size, Conductor - Copper Flex H Size, Conductor - Copper Flex I Size, Conductor - Copper Flex K Size, Conductor - Copper Flex M Size, Conductor - Copper Str Size2/0 AWG
Conductor - Copper Str Navy Size125 (61) Navy
Conductor - CopperWeld Str Size2/0 F AWG;2/0 G AWG;2/0 J AWG;2/0 K AWG;2/0 V AWG
Certification - CSA Approved, Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM
UL ListedYes

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYAV26L4TC14FXG11-211 @ $154.90
Graybar25366277111 @ $181.18
gordonelectricsupply.comYAV26L4TC14FXG11-211 @ $197.96
Platt.com209913011
