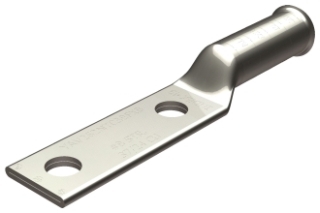

Burndy 001525 Copper Compression Lug, 2/0 AWG YAV262NTC38FXB. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Burndy . YAV262NTC38FXB

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitmm
diameter, height16.002
height_AttribDimension - Outside Diameter inch
length120.0
length_AttribDimension - L Length Overall mm
moq, multiple1
MPN, SKUYAV262NTC38FXB
qtyInStock0
snippetBurndy 001525 Copper Compression Lug, 2/0 AWG YAV262NTC38FXB. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width23.622
width_AttribDimension - Pad Width inch
Color CodeBlack
Connector TypeTerminal
Die Index13
Feature - Barrel StyleBelled
Feature - Barrel TypeLong
Material, Conductor - MaterialCopper
Physical Attribute - Number of Holes2
Physical Attribute - Tongue TypeStandard
Plated, Certification - CSA Approved, UL ListedYes
Plating TypeTin - Electro Plated
TypeLong Barrel, Tin Plated
Dimension - B Length inch, Dimension - Strip Length inch1.63 in
Dimension - Bolt Hole Size inch, Dimension - Hole Size inch0.40 in
Dimension - Bolt Size fraction3/8
Dimension - Hole Size mm10 mm
Dimension - L Length Overall mm120 mm
Dimension - Length Overall inch4.71 in
Dimension - N inch0.41 in
Dimension - Outside Diameter inch0.63 in
Dimension - Pad Width inch0.93 in
Dimension - Stud Size inch3/8 in
Dimension - Z inch0.42 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size2/0 (375/#24) DLO
Conductor - Copper Flex G Size, Conductor - Copper Flex H Size, Conductor - Copper Flex I Size, Conductor - Copper Flex K Size, Conductor - Copper Flex M Size, Conductor - Copper Str Size2/0 AWG
Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotYAV262NTC38FXB11
Allied Electronics7173117511
gordonelectricsupply.comYAV262NTC38FXB1-211 @ $25.20
usmegastore.comYAV262NTC38FXB1-211 @ $21.79
Crescent Electric Supply Co200890411
Platt.com153283111
Crescent Electric Supply CoYAV262NTC38FXB11
GalcoYAV262NTC38FXB-BURN111 @ $24.68
crescentelectric.com469310111 @ $45.60
