Order YAV25TC516FXB by Burndy Tin Plated Compression Lug, 600V to 35kV - US Mega Store

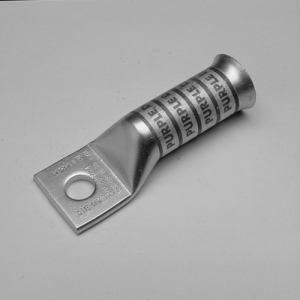

Burndy . YAV25TC516FXB

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YAV25TC516FXB
ConditionNEW
DimensionUnitmm
Extra Product NameOrder YAV25TC516FXB by Burndy Tin Plated Compression Lug, 600V to 35kV - US Mega Store
diameter, height14.224
height_AttribDimension - Outside Diameter inch
length67.0
length_AttribDimension - L Length Overall mm
moq, multiple, tierMinQty1, Physical Attribute - Number of Holes1
MPN, SKUYAV25TC516FXB
qtyInStock-2
qtySourceFieldMap
snippet<p><strong>Burndy, YAV25TC516FXB, Tin Plated Compression Lug, 600V to 35kV </strong> </p>
tierPrice114.93
width21.081999999999997
width_AttribDimension - Pad Width inch
Color CodePink
Connector TypeTerminal
Die Index12
Feature - Barrel StyleBelled
Feature - Barrel TypeLong
Material, Conductor - MaterialCopper
Physical Attribute - Tongue TypeStandard
Plated, UL ListedYes
Plating TypeTin - Electro Plated
TypeLong Barrel, Tin Plated
Dimension - B Length inch, Dimension - Strip Length inch1.50 in
Dimension - Bolt Hole Size inch, Dimension - Hole Size inch0.33 in
Dimension - Hole Size mm8 mm
Dimension - L Length Overall mm67 mm
Dimension - Length Overall inch2.64 in
Dimension - N inch0.34 in
Dimension - Outside Diameter inch0.56 in
Dimension - P inch1.86 in
Dimension - Pad Width inch0.83 in
Dimension - Stud Size inch5/16 in
Dimension - Z inch0.36 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size1/0 (275/#24) DLO
Conductor - Copper Flex G Size, Conductor - Copper Flex H Size, Conductor - Copper Flex I Size, Conductor - Copper Flex K Size, Conductor - Copper Flex M Size1/0 AWG
Conductor - Copper Str Navy Size100 (61) Navy
Conductor - Copper Str Size1/0
Certification - CSA Approved, Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Industry Standard(s), Standards - Industry Standards MetUL468A-468B
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYAV25TC516FXB1-211 @ $14.93
