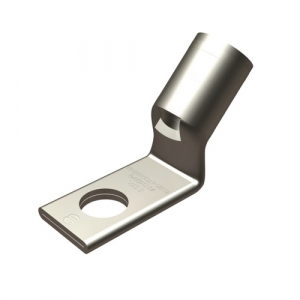

Order YAV25LTC516FX45 by Burndy Tubing Compression Terminal, 1 Hole, 45 Deg, (Pack of 25 pcs) - US Mega Store

Burndy . YAV25LTC516FX45

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YAV25LTC516FX45
ConditionNEW
DimensionUnitmm
Extra Product NameOrder YAV25LTC516FX45 by Burndy Tubing Compression Terminal, 1 Hole, 45 Deg, (Pack of 25 pcs) - US Mega Store
diameter, height14.224
height_AttribDimension - Outside Diameter inch
length45.0
length_AttribDimension - L Length Overall mm
moq, multiple, tierMinQty1, Physical Attribute - Number of Holes1
MPN, SKUYAV25LTC516FX45
qtyInStock-2
qtySourceFieldMap
snippet<p><strong>Burndy, YAV25LTC516FX45, Tubing Compression Terminal, 1 Hole, 45 Deg, 5/16" Stud </strong> </p>
tierPrice115.06
width21.081999999999997
width_AttribDimension - Pad Width inch
Color CodePink
Connector TypeTerminal
Die Index12
Feature - Barrel StyleChamfered
Feature - Barrel Type, Physical Attribute - Tongue TypeStandard
Material, Conductor - MaterialCopper
Plated, UL ListedYes
Plating TypeTin - Electro Plated
TypeStandard Barrel, Tin Plated
Dimension - B Length inch0.69 in
Dimension - Bolt Hole Size inch, Dimension - Hole Size inch0.33 in
Dimension - Hole Size mm8 mm
Dimension - L Length Overall mm45 mm
Dimension - Length Overall inch1.77 in
Dimension - N inch0.34 in
Dimension - Outside Diameter inch0.56 in
Dimension - Pad Width inch0.83 in
Dimension - Strip Length inch11/16 in
Dimension - Z inch0.36 in
Physical Attribute - Tongue Angle45 Degree
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size1/0 (275/#24) DLO
Conductor - Copper Flex G Size, Conductor - Copper Flex H Size, Conductor - Copper Flex I Size, Conductor - Copper Flex K Size, Conductor - Copper Flex M Size1/0 AWG
Conductor - Copper Str Navy Size100 (61) Navy
Conductor - Copper Str Size1/0
Conductor - CopperWeld Str Size1/0 F AWG;1/0 G AWG;1/0 J AWG;1/0 K AWG
Certification - CSA Approved, Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYAV25LTC516FX451-211 @ $15.06
GalcoYAV25LTC516FX45-BURN111 @ $0.00
