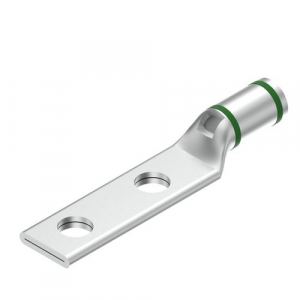

Order YAV1CL2TC516FX by Burndy Copper Compression Lug, 2 Hole, Flex, 5/16"x1", (Pack of 20 pcs) - US Mega Store

Burndy . YAV1CL2TC516FX

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YAV1CL2TC516FX
ConditionNEW
DimensionUnitmm
Extra Product NameOrder YAV1CL2TC516FX by Burndy Copper Compression Lug, 2 Hole, Flex, 5/16"x1", (Pack of 20 pcs) - US Mega Store
diameter, height12.953999999999999
height_AttribDimension - Outside Diameter inch
length69.0
length_AttribDimension - L Length Overall mm
moq, multiple, tierMinQty11
MPN, SKUYAV1CL2TC516FX
qtyInStock-2
qtySourceFieldMap
snippet<p><strong>Burndy, YAV1CL2TC516FX, Copper Compression Lug, 2 Hole, Flex, 5/16" x 1", Short Barrel, Tin Plated </strong> </p>
tierPrice119.18
width19.049999999999997
width_AttribDimension - Pad Width inch
Color CodeGreen
Connector TypeTerminal
Die Index11
Feature - Barrel TypeStandard
Material, Conductor - MaterialCopper
Physical Attribute - Number of Holes2
PlatedY
Plating TypeTin - Electro Plated
Temperature Rating194
TypeStandard Barrel, Tin Plated
Dimension - B Length fraction5/8 in
Dimension - B Length inch0.62 in
Dimension - Bolt Hole Size inch, Dimension - Hole Size inch0.33 in
Dimension - Hole Size mm8 mm
Dimension - L Length Overall mm69 mm
Dimension - Length Overall inch2.72 in
Dimension - N inch0.34 in
Dimension - Outside Diameter inch0.51 in
Dimension - Pad Width inch0.75 in
Dimension - Strip Length inch11/16 in
Dimension - Z inch0.36 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size, Conductor - Copper DLO Size Range1 (225/#24) DLO
Conductor - Copper Flex G Size, Conductor - Copper Flex G Size Range, Conductor - Copper Flex H Size, Conductor - Copper Flex H Size Range, Conductor - Copper Flex I Size, Conductor - Copper Flex I Size Range, Conductor - Copper Flex K Size, Conductor - Copper Flex K Size Range, Conductor - Copper Flex M Size, Conductor - Copper Flex M Size Range, Conductor - Copper Solid Size, Conductor - Copper Solid Size Range, Conductor - Copper Str Size, Conductor - Copper Str Size Range1 AWG
Conductor - Copper Str Navy Size, Conductor - Copper Str Navy Size Range75 Navy
Conductor - CopperWeld Str Size, Conductor - CopperWeld Str Size Range# 1 WELD
Certification - CSA Approved, UL ListedYes
Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYAV1CL2TC516FX1-211 @ $19.18
