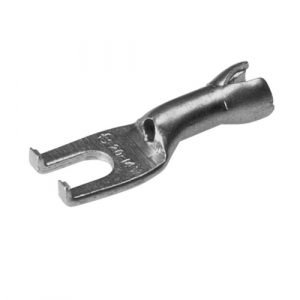

Order YAV14H32FBOX by Burndy Uninsulated Compression Terminal Fork Tongue, (Pack of 100 pcs) - US Mega Store

Burndy . YAV14H32FBOX

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YAV14H32FBOX
ConditionNEW
DimensionUnitmm
Extra Product NameOrder YAV14H32FBOX by Burndy Uninsulated Compression Terminal Fork Tongue, (Pack of 100 pcs) - US Mega Store
diameter, height4.3180000000000005
height_AttribDimension - Outside Diameter inch
length24.0
length_AttribDimension - L Length Overall mm
moq, multiple, tierMinQty1, Physical Attribute - Number of Holes1
MPN, SKUYAV14H32FBOX
qtyInStockContact Us
snippet<p><strong>Burndy, YAV14H32FBOX, Uninsulated Compression Terminal Fork Tongue, 20-14 AWG, 0.9" </strong> </p>
tierPrice11.24
width7.619999999999999
width_AttribDimension - Pad Width inch
Connector TypeTerminal - Fork
Feature - Barrel StyleShrouded
Feature - Barrel TypeStandard
MaterialCopper
Physical Attribute - Tongue TypeFork
PlatedY
Plating TypeTin
TypeFork Tongue
Cable Insulation Diameter Maximum0.150 in
Dimension - B Length fraction, Dimension - Strip Length inch1/4 in
Dimension - B Length inch0.27 in
Dimension - Hole Size fraction3/20
Dimension - Hole Size inch0.15 in
Dimension - L Length Overall mm24 mm
Dimension - Length Overall inch0.96 in
Dimension - N inch0.19 in
Dimension - Outside Diameter inch0.17 in
Dimension - Pad Width inch0.30 in
Dimension - Stud Size inch#4;#5;#6
Dimension - Z inch0.23 in
Conductor - Copper Str Aircraft SizeAN 20;AN 18;AN 16;AN 14
Conductor - Copper Str Aircraft Size RangeAN 20-AN 14
Conductor - Copper Str Navy Size2 1/2 (1);2 1/2 (19);2 1/2 (26);3 (7);4 (1);4 (7);4 (19);4 (41)
Conductor - Copper Str Navy Size Range2 1/2 (1)-4 (41)
Conductor - Copper Str Size20 AWG;18 AWG;16 AWG;14 AWG
Conductor - Copper Str Size Range20 AWG-14 AWG
Conductor TypeCU C Str-Size
Certification - CSA Approved, Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM
UL ListedYes
Carton Quantity1200
Minimum Pack Quantity100

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYAV14H32FBOX1Contact Us11 @ $1.24
