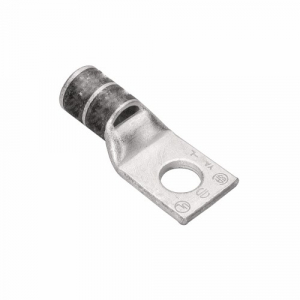

Order YA8CL1NK by Burndy 50251C Cu Tubing Compression Terminal 1 Hole, (Pack of 50 pcs) - US Mega Store

Burndy . YA8CL1NK

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Connector Adapters
CategoryL3Burndy YA8CL1NK
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YA8CL1NK by Burndy 50251C Cu Tubing Compression Terminal 1 Hole, (Pack of 50 pcs) - US Mega Store
UPC781810069547
diameter, height, length0.27
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty1, Physical Attribute - Number of Holes1
MPN, SKUYA8CL1NK
qtyInStock-2
qtySourceFieldMap
snippet<p>Cu Tubing Compression Terminal, 1 Hole W/InspWindow, #8 AWG #6 Sol. Code, 23 Navy, 600V - 35kV, 1/4" Stud, Nickel Plated. </p>
tierPrice116.07
width0.44
width_AttribDimension - Pad Width inch
Color CodeRed
Connector TypeTerminal
Die Index49
Feature - Barrel StyleChamfered
Feature - Barrel TypeStandard
Material, Conductor - MaterialCopper
PlatedY
Plating TypeTin Plated
Temperature Rating194
Trade NameHYLUG
TypeStandard Barrel, Nickel Plated
UPC 12 Digit7818100695477
Dimension - B Length inch, Dimension - Pad Width inch0.44 in
Dimension - Bolt Hole Size inch, Dimension - Hole Size inch, Dimension - Outside Diameter inch0.27 in
Dimension - D inch0.58 in
Dimension - Hole Size mm7 mm
Dimension - L Length Overall mm32 mm
Dimension - Length Overall inch1.26 in
Dimension - N inch0.25 in
Dimension - Strip Length inch7/16
Dimension - Z inch0.33 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Voltage - Maximum35000
Conductor - Copper Solid Size6 AWG
Conductor - Copper Solid Size Range8-6 Sol
Conductor - Copper Str Navy Size, Conductor - Copper Str Navy Size Range23 (7) Navy
Conductor - Copper Str Size, Conductor - Copper Str Size Range8 AWG

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYA8CL1NK1-211 @ $16.07
