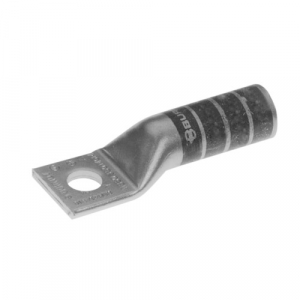

Order YA4CG7 by Burndy 502642 Cu Hylug 1 Hole 1/4" Stud, (Pack of 500 pcs) - US Mega Store

Burndy . YA4CG7

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Connector Adapters
CategoryL3Burndy YA4CG7
ConditionNEW
DimensionUnitmm
Extra Product NameOrder YA4CG7 by Burndy 502642 Cu Hylug 1 Hole 1/4" Stud, (Pack of 500 pcs) - US Mega Store
UPC781810096833
diameter, height8.636000000000001
height_AttribDimension - Outside Diameter inch
length32.0
length_AttribDimension - L Length Overall mm
moq, multiple, tierMinQty1, Physical Attribute - Number of Holes1
MPN, SKUYA4CG7
qtyInStock-2
qtySourceFieldMap
snippet<p>Cu Hylug; 1 Hole w/o Inspection Window; 5 (91/#24) DLO; 600V-35kV; 1/4" stud; Compression; 0.28 in BCD. </p>
tierPrice111.81
width12.7
width_AttribDimension - Pad Width inch
Connector TypeTerminal
Feature - Barrel StyleChamfered
Feature - Barrel TypeLong
Material, Conductor - MaterialCopper
PlatedY
Plating TypeTin
Temperature Rating194
Trade NameHYLUG
UPC 12 Digit7818100968333
Dimension - B Length fraction1/2 in
Dimension - B Length inch, Dimension - Pad Width inch0.50 in
Dimension - Bolt Hole Size inch0.27 in
Dimension - D inch0.56 in
Dimension - Hole Size inch0.28 in
Dimension - Hole Size mm7 mm
Dimension - L Length Overall mm32 mm
Dimension - Length Overall inch1.25 in
Dimension - N inch0.25 in
Dimension - Outside Diameter inch0.34 in
Dimension - Z inch0.31 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Voltage - Maximum35000
Conductor - Copper DLO Size, Conductor - Copper DLO Size Range5 (91/#24) DLO
Conductor - Copper Str Size, Conductor - Copper Str Size Range5 AWG

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYA4CG71-211 @ $11.81
