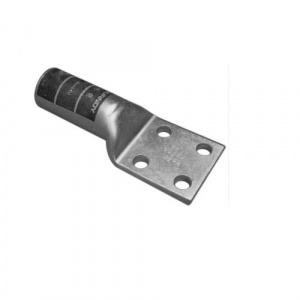

Order YA474N by Burndy Copper Compression Lug, 4 Hole w/o Inspection Window, (Pack of 5 pcs) - US Mega Store

Burndy . YA474N

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YA474N
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YA474N by Burndy Copper Compression Lug, 4 Hole w/o Inspection Window, (Pack of 5 pcs) - US Mega Store
diameter, height, length1.98
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty11
MPN, SKUYA474N
qtyInStock-2
qtySourceFieldMap
snippet<p><strong>Burndy, YA474N, Copper Compression Lug, 4 Hole w/o Inspection Window, 1/2" Stud, Long Barrel, Tin Plated. </strong> </p>
tierPrice1462.3
width2.9
width_AttribDimension - Pad Width inch
Color CodeGray
Connector TypeTerminal
Die Index33
Feature - Barrel StyleChamfered
Feature - Barrel TypeLong
Material, Conductor ? MaterialCopper
Physical Attribute - Number of Holes2
PlatedY
Plating TypeTin plated
Trade NameHYLUG;
TypeLong Barrel, Tin Plated
Dimension - B Length inch3.44 in
Dimension - Bolt Hole Size inch0.52 in
Dimension - Bolt Size fraction, Dimension - Stud Size inch, Dimension - Thread Size1/2
Dimension - Hole Size inch0.56 in
Dimension - Hole Size mm14 mm
Dimension - L Length Overall mm200 mm
Dimension - Length Overall inch7.89 in
Dimension - N inch0.63 in
Dimension - Outside Diameter inch1.98 in
Dimension - Pad Width inch2.90 in
Dimension - Strip Length inch3-1/2
Dimension - Z inch0.64 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper Str Size, Conductor - Copper Str Size Range1750 kcmil

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYA474N1-211 @ $462.30
