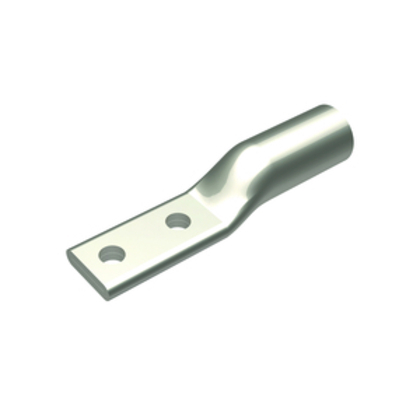

Burndy 26001062 Al Compression Lug, 2 Hole, 700 Kcmil YA39A5DT. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Burndy . YA39A5DT

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitmm
diameter, height37.083999999999996
height_AttribDimension - Outside Diameter inch
length180.0
length_AttribDimension - L Length Overall mm
moq, multiple1
MPN, SKUYA39A5DT
qtyInStock0
snippetBurndy 26001062 Al Compression Lug, 2 Hole, 700 Kcmil YA39A5DT. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width41.148
width_AttribDimension - Pad Width inch
Color CodeYellow
Connector TypeTerminal
Die Index936
Feature - Barrel StyleChamfered
Feature - Barrel TypeLong
Item Type3C
MaterialAluminum
Physical Attribute - Number of Holes2
Physical Attribute - Tongue TypeStandard
PlatedY
Plating TypeTin - Electro Plated
Temperature Rating194
Trade NameHYLUG™
Dimension - B Length fraction2-7/16 in
Dimension - B Length inch2.46 in
Dimension - Bolt Hole Size inch0.52 in
Dimension - Bolt Size fraction, Dimension - Thread Size1/2
Dimension - D inch3.15 in
Dimension - Hole Size inch0.56 in
Dimension - Hole Size mm14 mm
Dimension - L Length Overall mm180 mm
Dimension - Length Overall inch7.07 in
Dimension - N inch0.63 in
Dimension - Outside Diameter inch1.46 in
Dimension - Pad Width inch1.62 in
Dimension - Z inch0.77 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - AL Str Size700 kcmil;715 kcmil;750 kcmil
Conductor - AL Str Size Range, Conductor - Copper Str Size Range700 kcmil-750 kcmil
Conductor - Copper Str Size700 kcmil;750 kcmil
Certification - CSA Approved, Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM
UL ListedYes

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotYA39A5DT11
usmegastore.comYA39A5DT1-211 @ $175.60
Graybar25310032111 @ $171.68
Platt.com209948111
GalcoYA39A5DT-BURN331 @ $225.34
