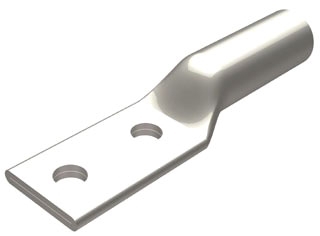

Burndy 510270 Copper Compression Lug, 2 Hole YA392NDTS. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitinch
diameter, height, length1.3
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple1
MPN, SKUYA392NDTS
qtyInStock0
snippetBurndy 510270 Copper Compression Lug, 2 Hole YA392NDTS. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width1.91
width_AttribDimension - Pad Width inch
Color CodeBlack
Connector TypeTerminal
Die Index24
Feature - Barrel StyleChamfered
Feature - Barrel TypeLong
Material, Conductor - MaterialCopper
Physical Attribute - Number of Holes2
PlatedY
Plating TypeTin
Trade NameHYLUG™

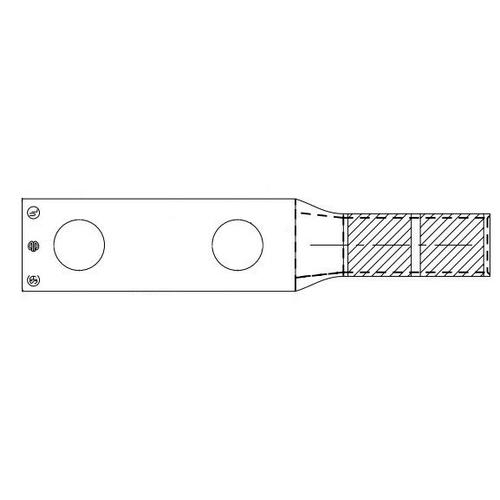

Dimension - B Length fraction2-7/8 in
Dimension - B Length inch2.88 in
Dimension - Bolt Hole Size inch0.52 in
Dimension - Bolt Size fraction1/2
Dimension - Hole Size inch0.56 in
Dimension - Hole Size mm14 mm
Dimension - L Length Overall mm174 mm
Dimension - Length Overall inch6.87 in
Dimension - N inch0.63 in
Dimension - Outside Diameter inch1.30 in
Dimension - Pad Width inch1.91 in
Dimension - Strip Length inch2-15/16
Dimension - Z inch0.64 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper Str Size750 kcmil
Certification - CSA Approved, UL ListedYes
Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotYA392NDTS11
gordonelectricsupply.comYA392NDTS1-211 @ $744.78
usmegastore.comYA392NDTS1-211 @ $120.50
Platt.com209947711
GalcoYA392NDTS-BURN661 @ $162.32
