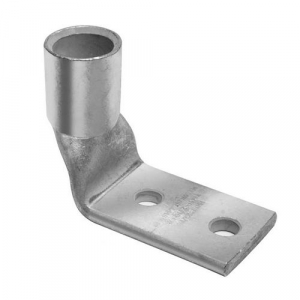

Order YA38L2NTCFX90 by Burndy 510460 Cu Tubing Hylug 500 kcmil Flex, (Pack of 10 pcs) - US Mega Store

Burndy . YA38L2NTCFX90

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Connector Adapters
CategoryL3Burndy YA38L2NTCFX90
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YA38L2NTCFX90 by Burndy 510460 Cu Tubing Hylug 500 kcmil Flex, (Pack of 10 pcs) - US Mega Store
UPC781810021361
diameter, length1.25
height2.8
height_AttribDimension - Height inch
length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty11
MPN, SKUYA38L2NTCFX90
qtyInStock-2
qtySourceFieldMap
snippet<p>Cu Tubing Hylug; 2 Holes with Inspection Window; 500 kcmil Flex; 600V-35kV; 1/2" stud; Standard; Compression; 0.56 in BCD; Pink. </p>
tierPrice199.55
width1.84
width_AttribDimension - Pad Width inch
Color CodePink
Connector TypeTerminal
Die IndexL99
Feature - Barrel Type, Physical Attribute - Tongue TypeStandard
Material, Conductor - MaterialCopper
Physical Attribute - Number of Holes2
PlatedY
Plating TypeTin
Trade NameHYLUG
TypeStandard Barrel, Tin Plated
UPC 12 Digit7818100213611
Dimension - B Length fraction1-7/16 in
Dimension - B Length inch1.45 in
Dimension - Bolt Hole Size inch0.52 in
Dimension - Bolt Size fraction1/2
Dimension - Height inch2.80 in
Dimension - Hole Size inch0.56 in
Dimension - Hole Size mm14 mm
Dimension - L Length Overall mm98 mm
Dimension - Length Overall inch3.84 in
Dimension - N inch0.63 in
Dimension - Outside Diameter inch1.25 in
Dimension - Pad Width inch1.84 in
Dimension - Strip Length inch1-7/16
Dimension - Z inch0.65 in
Physical Attribute - Tongue Angle90 Degree
Rating - KVA35 kV
Voltage - Maximum35000
Conductor - Copper DLO Size535.3 (1325/#24) DLO
Conductor - Copper DLO Size Range535 kcmil
Conductor - Copper Flex G Size, Conductor - Copper Flex H Size, Conductor - Copper Flex I Size, Conductor - Copper Flex K Size, Conductor - Copper Flex K Size Range, Conductor - Copper Flex M Size, Conductor - Copper Flex M Size Range500 kcmil
Conductor - Copper Flex G Size Range550 kcmil
Conductor - Copper Flex H Size Range, Conductor - Copper Flex I Size Range, Conductor - Copper Str Size Range500 / 550 kcmil

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYA38L2NTCFX901-211 @ $99.55
