Burndy 50227H Copper Compression Lug, 1 Hole, #4 AWG YA4CL345. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Burndy . YA4CL345

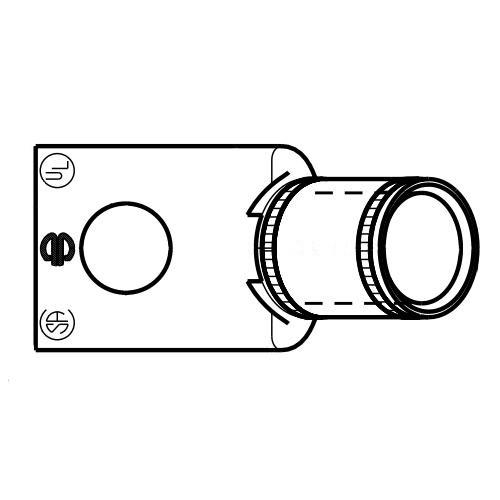

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitinch
diameter, length0.34
height1.02
height_AttribDimension - Height inch
length_AttribDimension - Outside Diameter inch
moq, multiple, Physical Attribute - Number of Holes1
MPN, SKUYA4CL345
qtyInStock0
snippetBurndy 50227H Copper Compression Lug, 1 Hole, #4 AWG YA4CL345. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width0.5
width_AttribDimension - Pad Width inch
Color CodeGray
Connector TypeTerminal
Die Index8;346
Feature - Barrel Type, Physical Attribute - Tongue TypeStandard
Material, Conductor - MaterialCopper
PlatedY
Plating TypeTin - Electro Plated
Trade NameHYLUG™
TypeStandard Barrel, Tin Plated
Dimension - B Length fraction13/16 in
Dimension - B Length inch0.81 in
Dimension - Bolt Hole Size inch0.33 in
Dimension - D inch0.70 in
Dimension - Height inch1.02 in
Dimension - Hole Size mm8 mm
Dimension - L Length Overall mm43 mm
Dimension - Length Overall inch1.69 in
Dimension - N inch, Dimension - Outside Diameter inch0.34 in
Dimension - Pad Width inch0.50 in
Dimension - Strip Length inch7/8
Dimension - Stud Size inch5/16
Dimension - Z inch0.36 in
Physical Attribute - Tongue Angle45 Degree
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size RangeN/A
Conductor - Copper Str Navy Size, Conductor - Copper Str Navy Size Range40 (19) Navy
Conductor - Copper Str Size, Conductor - Copper Str Size Range4 AWG
Certification - CSA Approved, UL ListedYes
Certification - UL Recognized, Certification - cULusNo
Industry Standard(s)UL467
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotYA4CL34511
usmegastore.comYA4CL3451-211 @ $8.10
Platt.com209949911
GalcoYA4CL345-BURN50501 @ $12.87
