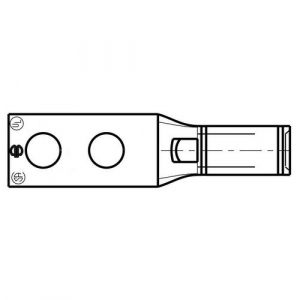

Burndy 50250D Copper Compression Lug, 2 Hole, #4 AWG YA4CL2TC516. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Burndy . YA4CL2TC516

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitmm
diameter, height8.636000000000001
height_AttribDimension - Outside Diameter inch
length75.0
length_AttribDimension - L Length Overall mm
moq, multiple1
MPN, SKUYA4CL2TC516
qtyInStock0
snippetBurndy 50250D Copper Compression Lug, 2 Hole, #4 AWG YA4CL2TC516. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width13.208
width_AttribDimension - Pad Width inch
Color CodeGray
Connector TypeTerminal
Die Index8 ; 346
Feature - Barrel Type, Physical Attribute - Tongue TypeStandard
Item Type3C
Material, Conductor - MaterialCopper
Physical Attribute - Number of Holes2
PlatedY
Plating TypeTin Plating
Trade NameHYLUG™
TypeStandard Barrel, Tin Plated
Dimension - B Length fraction13/16 in
Dimension - B Length inch0.81 in
Dimension - Bolt Hole Size inch, Dimension - Hole Size inch0.33 in
Dimension - D inch1.70 in
Dimension - Hole Size mm8 mm
Dimension - L Length Overall mm75 mm
Dimension - Length Overall inch2.96 in
Dimension - N inch, Dimension - Outside Diameter inch0.34 in
Dimension - Pad Width inch0.52 in
Dimension - Strip Length inch7/8 in
Dimension - Stud Size inch5/16
Dimension - Z inch0.39
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size RangeN/A
Conductor - Copper Solid Size, Conductor - Copper Str Size#4 AWG
Conductor - Copper Str Navy Size, Conductor - Copper Str Navy Size Range40 (19) Navy
Certification - CSA Approved, UL ListedYes
Certification - UL Recognized, Certification - cULusNo
Industry Standard(s)UL468A-468B
Standards - RoHS Compliance StatusCM
