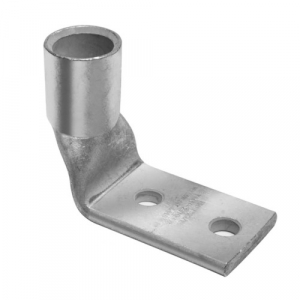

Order YA4C2L90 by Burndy 10015597 Two Hole Cu Compression Terminal 1/4" Stud, (Pack of 50 pcs) - US Mega Store

Burndy . YA4C2L90

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Connector Adapters
CategoryL3Burndy YA4C2L90
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YA4C2L90 by Burndy 10015597 Two Hole Cu Compression Terminal 1/4" Stud, (Pack of 50 pcs) - US Mega Store
UPC781810317228
diameter, length0.34
height1.22
height_AttribDimension - Height inch
length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty11
MPN, SKUYA4C2L90
qtyInStockContact Us
snippet<p>Two hole Cu Compression terminal, 4 AWG, 1/4" stud, 90 Degree Bent, Tin plated. </p>
tierPrice114.48
width0.51
width_AttribDimension - Pad Width inch
Color CodeGray
Connector TypeTerminal
Die Index8
Feature - Barrel TypeStandard
Material, Conductor - MaterialCopper
Physical Attribute - Number of Holes2
PlatedY
Plating TypeTin - Electro Plated
Temperature Rating194
Trade NameHYLUG
TypeStandard Barrel, Tin Plated
UPC 12 Digit7818103172288
Dimension - B Length fraction13/16 in
Dimension - B Length inch0.81 in
Dimension - D inch1.21 in
Dimension - Height inch1.22 in
Dimension - Hole Size inch0.27 in
Dimension - Hole Size mm7 mm
Dimension - Inside Diameter inch, Dimension - N inch0.25 in
Dimension - L Length Overall mm37 mm
Dimension - Length Overall inch1.47 in
Dimension - Outside Diameter inch0.34 in
Dimension - Pad Width inch0.51 in
Dimension - Strip Length inch7/8
Dimension - Stud Size inch1/4
Dimension - Z inch0.33 in
Physical Attribute - Tongue Angle90 Degree
Rating - KVA35 kV
Voltage - Maximum35000
Conductor - Copper DLO Size RangeN/A
Conductor - Copper Str Size, Conductor - Copper Str Size Range4 AWG

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYA4C2L901Contact Us11 @ $14.48
