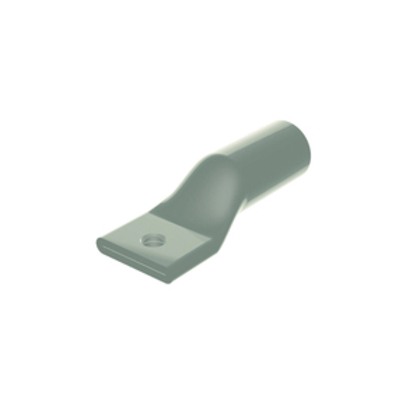

Burndy 50019973 Al Compression Lug, 1 Hole, 900 Kcmil YA42A3. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Burndy . YA42A3

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitinch
moq, multiple, Physical Attribute - Number of Holes1
MPN, SKUYA42A3
qtyInStock0
snippetBurndy 50019973 Al Compression Lug, 1 Hole, 900 Kcmil YA42A3. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width2.14
width_AttribDimension - Pad Width inch
Color CodeGray
Connector TypeTerminal
Die Index303
Feature - Barrel Type, Physical Attribute - Tongue TypeStandard
Item Type3C
MaterialAluminum
PlatedY
Plating TypeTin - Electro Plated
Temperature Rating194
Trade NameHYLUG™
Dimension - D inch1.36 in
Dimension - L Length Overall mm135 mm
Dimension - Length Overall inch5.32 in
Dimension - N inch0.63 in
Dimension - Pad Width inch2.14 in
Dimension - Strip Length inch2 7/8
Dimension - Stud Size inch5/8
Dimension - Z inch1.00 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper Str Size900 Kcmil AL;600 Kcmil CU
Conductor - Copper Str Size Range900 Kcmil AL-600 Kcmil CU
Certification - CSA Approved, UL ListedYes
Certification - UL Recognized, Certification - cULusNo
Industry Standard(s)UL468A-468B
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotYA42A311
usmegastore.comYA42A31-211 @ $122.20
Platt.com209954911
GalcoYA42A3-BURN111 @ $148.71
