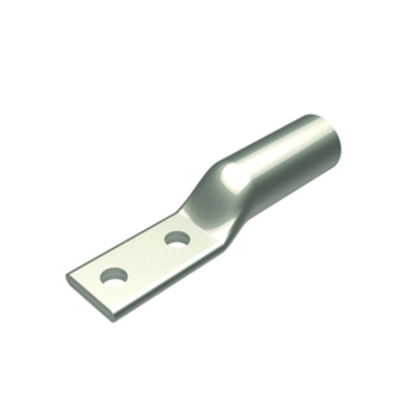

Burndy 25019918 Cu Compression Lug, 2 Hole, 650 Kcmil YA402NTCFX. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitinch
diameter, height, length1.35
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple1
MPN, SKUYA402NTCFX
qtyInStock0
snippetBurndy 25019918 Cu Compression Lug, 2 Hole, 650 Kcmil YA402NTCFX. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width1.98
width_AttribDimension - Pad Width inch
Color CodeBlack
Connector TypeTerminal
Die Index24
Feature - Barrel StyleChamfered
Feature - Barrel TypeLong
Material, Conductor - MaterialCopper
Physical Attribute - Number of Holes2
PlatedY
Plating TypeElectro Tin Plated
Temperature Rating194
Trade NameHYLUG™
TypeLong Barrel, Tin Plated
Dimension - B Length inch2.94 in
Dimension - Bolt Hole Size inch0.52 in
Dimension - Bolt Size fraction1/2
Dimension - D inch3.02 in
Dimension - Hole Size inch, Dimension - Outside Diameter inch1.35 in
Dimension - Hole Size mm34 mm
Dimension - L Length Overall mm177 mm
Dimension - Length Overall inch6.95 in
Dimension - N inch0.63 in
Dimension - Pad Width inch1.98 in
Dimension - Strip Length inch3
Dimension - Z inch0.64 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size646 (1600/#24)
Conductor - Copper Flex G Size, Conductor - Copper Flex H Size, Conductor - Copper Flex I Size, Conductor - Copper Flex K Size, Conductor - Copper Flex M Size, Conductor - Copper Str Size650
Certification - CSA Approved, UL ListedYes
Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotYA402NTCFX11
usmegastore.comYA402NTCFX1-211 @ $128.10
Platt.com209948911
GalcoYA402NTCFX-BURN661 @ $164.34
Crescent Electric Supply Co283421111
