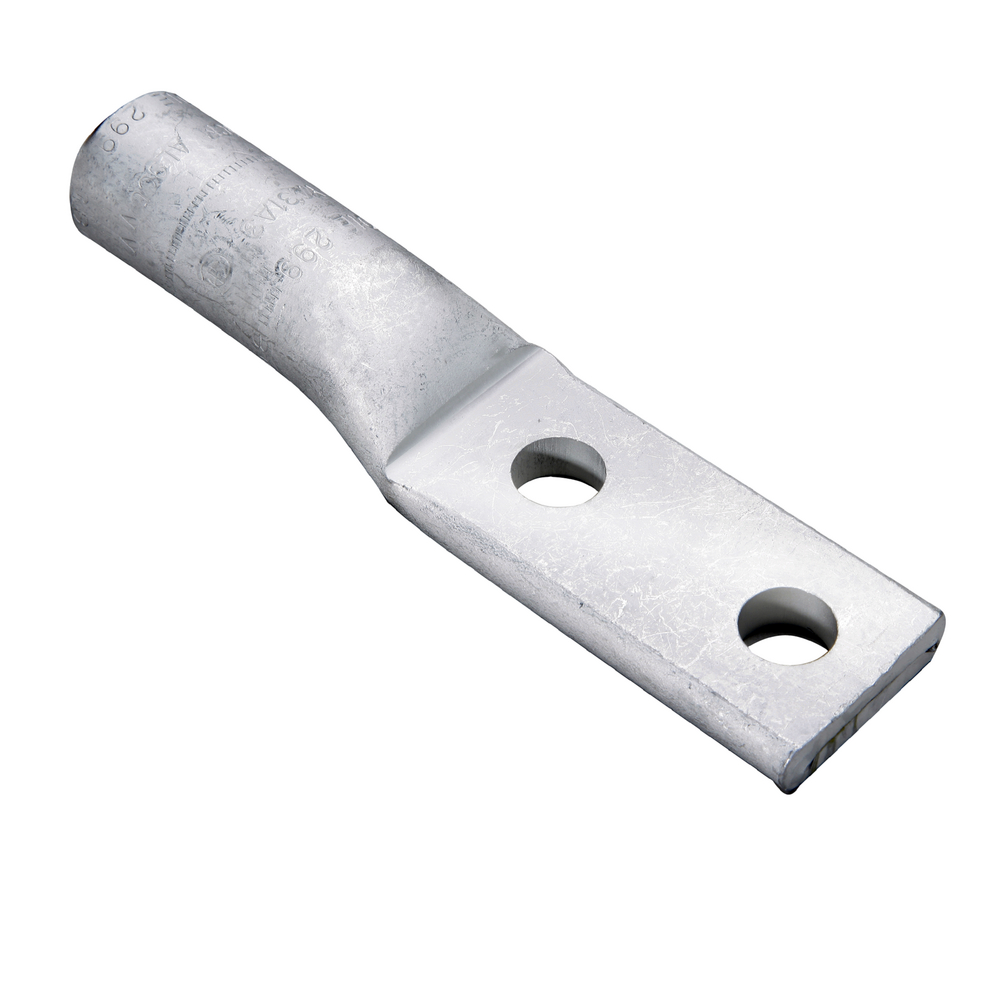

Burndy Aluminum Compression Lug, 2 Hole, 700 Kcmil YA39A13. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Burndy . YA39A13

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitmm
length180.0
length_AttribDimension - L Length Overall mm
moq, multiple1
MPN, SKUYA39A13
qtyInStock0
snippetBurndy Aluminum Compression Lug, 2 Hole, 700 Kcmil YA39A13. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width52.06999999999999
width_AttribDimension - Pad Width inch
Color CodeYellow
Connector TypeTerminal
Die Index936
Feature - Barrel StyleChamfered
Feature - Barrel Type, Physical Attribute - Tongue TypeStandard
Item Type4D
MaterialAluminum
Physical Attribute - Number of Holes2
PlatedY
Plating TypeTin - Electro Plated
Temperature Rating194
Trade NameHYLUG™
Dimension - B Length fraction2-7/16 in
Dimension - B Length inch2.46 in
Dimension - Bolt Hole Size inch0.52 in
Dimension - Bolt Size fraction, Dimension - Thread Size1/2
Dimension - D inch3.15 in
Dimension - Hole Size inch0.56 in
Dimension - Hole Size mm14 mm
Dimension - L Length Overall mm180 mm
Dimension - Length Overall inch7.07 in
Dimension - N inch0.63 in
Dimension - Pad Width inch2.05 in
Dimension - Z inch0.77 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - AL Str Size700 kcmil;715 kcmil;750 kcmil
Conductor - AL Str Size Range, Conductor - Copper Str Size Range700 kcmil-750 kcmil
Conductor - Copper Str Size700 kcmil;750 kcmil
Industry Standard(s)UL468A-468B
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotYA39A1311
gordonelectricsupply.comYA39A131-211 @ $53.38
usmegastore.comYA39A131Contact Us11 @ $45.30
Graybar25962470111 @ $46.57
Platt.com153283311
GalcoYA39A13-BURN10101 @ $59.91
