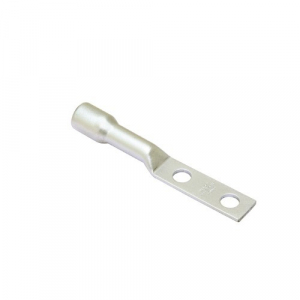

Burndy 612213 Cu Compression Lug, 2 Hole, 500 Kcmil YA392LH95TN. ✅$50 OFF Orders over $1499 ✅. Save Now! ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Burndy . YA392LH95TN

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitmm
diameter, height33.019999999999996
height_AttribDimension - Outside Diameter inch
length177.0
length_AttribDimension - L Length Overall mm
moq, multiple1
MPN, SKUYA392LH95TN
qtyInStock0
snippetBurndy 612213 Cu Compression Lug, 2 Hole, 500 Kcmil YA392LH95TN. ✅$50 OFF Orders over $1499 ✅. Save Now! ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width48.513999999999996
width_AttribDimension - Pad Width inch
Connector TypeTerminal
Die Index1029
Feature - Barrel StyleShrouded
Feature - Barrel TypeStandard
Material, Conductor - MaterialCopper
Physical Attribute - Number of Holes2
PlatedY
Plating TypeTin - Electro Plated
Trade NameHYLUG™
TypeShrouded Barrel, Tin Plated
Dimension - B Length fraction1-7/8 in
Dimension - B Length inch1.88 in
Dimension - Hole Size inch0.56 in
Dimension - Hole Size mm14 mm
Dimension - L Length Overall mm177 mm
Dimension - Length BB inch1.00 in
Dimension - Length Overall inch6.97 in
Dimension - N inch0.53 in
Dimension - Outside Diameter inch1.30 in
Dimension - Pad Width inch1.91 in
Dimension - Z inch2.32 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size RangeN/A
Conductor - Copper Flex G Size, Conductor - Copper Flex G Size Range, Conductor - Copper Flex H Size, Conductor - Copper Flex H Size Range, Conductor - Copper Flex I Size, Conductor - Copper Flex I Size Range, Conductor - Copper Flex K Size, Conductor - Copper Flex K Size Range, Conductor - Copper Flex M Size, Conductor - Copper Flex M Size Range500 kcmil
Certification - CSA Approved, Certification - UL Recognized, Certification - cULus, UL ListedNo
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotYA392LH95TN11
usmegastore.comYA392LH95TN1-211 @ $111.30
Platt.com209947411
GalcoYA392LH95TN-BURN25251 @ $178.81
