Burndy 510479 Cu Compression Lug, 1 Hole, 500 Kcmil YA38LTC12FX45. ✅$30 OFF Orders over $999 ✅. Save Now! ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

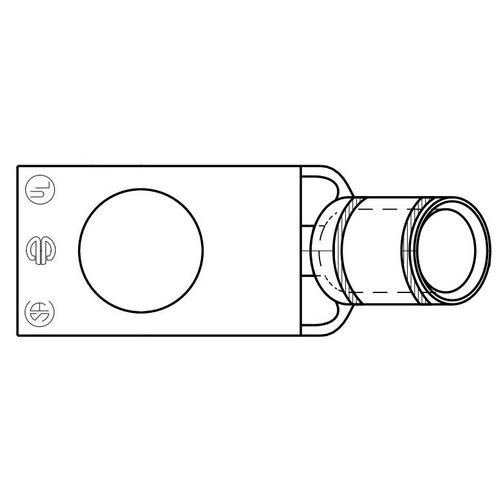

Burndy . YA38LTC12FX45

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitinch
diameter, length1.25
height2.6
height_AttribDimension - Height inch
length_AttribDimension - Outside Diameter inch
moq, multiple, Physical Attribute - Number of Holes1
MPN, SKUYA38LTC12FX45
qtyInStock0
snippetBurndy 510479 Cu Compression Lug, 1 Hole, 500 Kcmil YA38LTC12FX45. ✅$30 OFF Orders over $999 ✅. Save Now! ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width1.84
width_AttribDimension - Pad Width inch
Color CodePink
Connector TypeTerminal
Die IndexL99
Feature - Barrel StyleChamfered
Feature - Barrel TypeStandard
Material, Conductor - MaterialCopper
PlatedY
Plating TypeTin
Trade NameHYLUG™
TypeStandard Barrel, Tin Plated
Dimension - B Length fraction1-7/16 in
Dimension - B Length inch1.45 in
Dimension - Bolt Hole Size inch0.52 in
Dimension - Bolt Size fraction1/2
Dimension - Height inch2.60 in
Dimension - Hole Size inch, Dimension - N inch0.53 in
Dimension - Hole Size mm13 mm
Dimension - L Length Overall mm85 mm
Dimension - Length Overall inch3.35 in
Dimension - Outside Diameter inch1.25 in
Dimension - Pad Width inch1.84 in
Dimension - Strip Length inch1-7/16
Dimension - Z inch0.55 in
Physical Attribute - Tongue Angle45 Degree
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size, Conductor - Copper DLO Size Range535.3 (1325/#24) DLO
Conductor - Copper Flex G Size, Conductor - Copper Flex G Size Range, Conductor - Copper Flex H Size, Conductor - Copper Flex H Size Range, Conductor - Copper Flex I Size, Conductor - Copper Flex I Size Range, Conductor - Copper Flex K Size, Conductor - Copper Flex K Size Range, Conductor - Copper Flex M Size, Conductor - Copper Flex M Size Range500 kcmil
Certification - CSA Approved, UL ListedYes
Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotYA38LTC12FX4511
usmegastore.comYA38LTC12FX451-211 @ $68.05
Platt.com209947311
GalcoYA38LTC12FX45-BURN20201 @ $103.94
