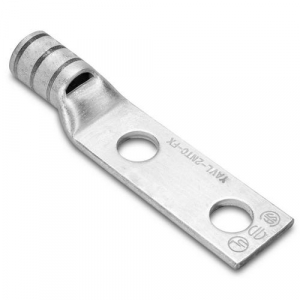

Order YA38L2TC516FX by Burndy 510556 Lug 500 Kcmil Two Hole 5/16 Stud Size, (Pack of 25 pcs) - US Mega Store

Burndy . YA38L2TC516FX

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Connector Adapters
CategoryL3Burndy YA38L2TC516FX
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YA38L2TC516FX by Burndy 510556 Lug 500 Kcmil Two Hole 5/16 Stud Size, (Pack of 25 pcs) - US Mega Store
UPC781810035702
diameter, height, length1.25
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty11
MPN, SKUYA38L2TC516FX
qtyInStock-2
qtySourceFieldMap
tierPrice186.52
width1.84
width_AttribDimension - Pad Width inch
Color CodePink
Connector TypeTerminal
Die IndexL99
Feature - Barrel TypeStandard
Material, Conductor - MaterialCopper
Physical Attribute - Number of Holes2
PlatedY
Plating TypeTin
Trade NameHYLUG
TypeStandard Barrel, Tin Plated
UPC 12 Digit7818100357022
Dimension - B Length fraction1-7/16 in
Dimension - B Length inch1.45 in
Dimension - Bolt Hole Size inch, Dimension - Hole Size inch0.33 in
Dimension - Bolt Size fraction5/16
Dimension - Hole Size mm8 mm
Dimension - L Length Overall mm103 mm
Dimension - Length Overall inch4.04 in
Dimension - N inch0.34 in
Dimension - Outside Diameter inch1.25 in
Dimension - Pad Width inch1.84 in
Dimension - Strip Length inch1-7/16
Dimension - Z inch0.36 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Voltage - Maximum35000
Conductor - Copper DLO Size535.3 (1325/#24) DLO
Conductor - Copper DLO Size Range535 kcmil
Conductor - Copper Flex G Size, Conductor - Copper Flex H Size, Conductor - Copper Flex I Size, Conductor - Copper Flex K Size, Conductor - Copper Flex K Size Range, Conductor - Copper Flex M Size, Conductor - Copper Flex M Size Range500 kcmil
Conductor - Copper Flex G Size Range550 kcmil
Conductor - Copper Flex H Size Range, Conductor - Copper Flex I Size Range, Conductor - Copper Str Size Range500 / 550 kcmil

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYA38L2TC516FX1-211 @ $86.52
