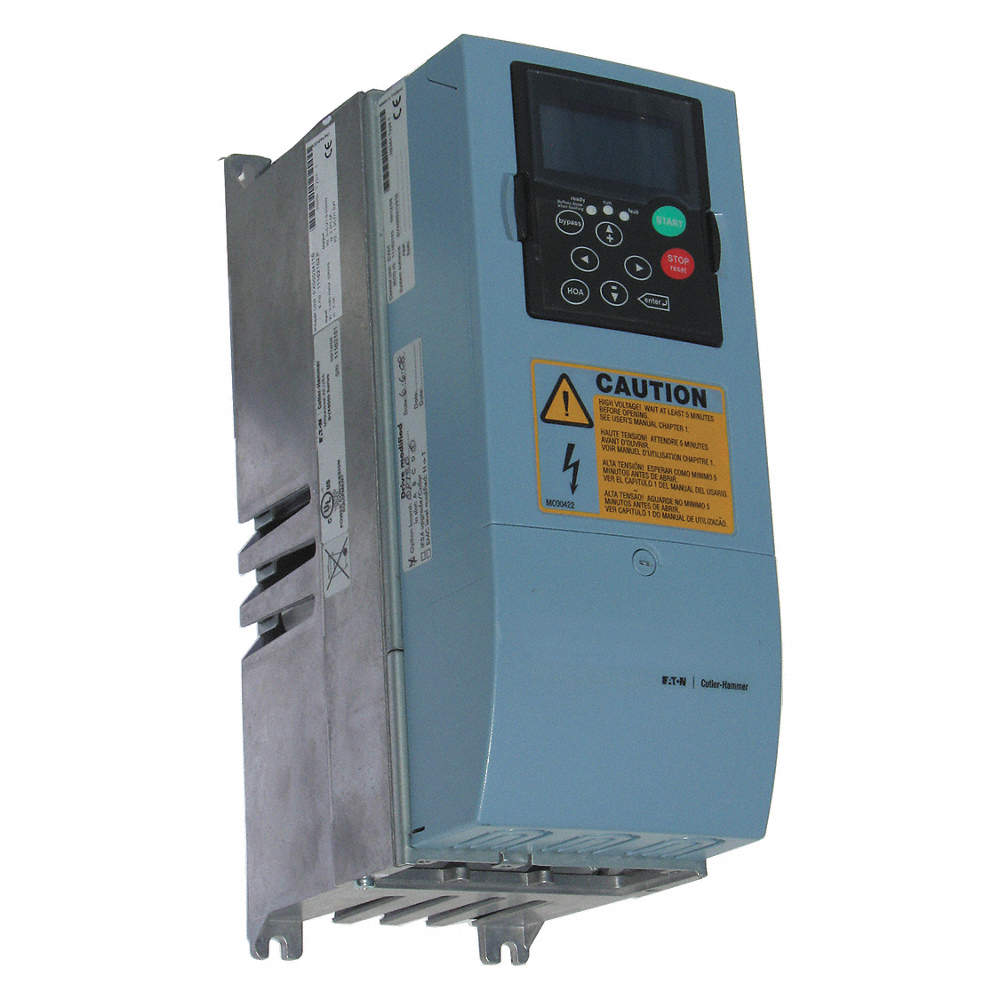

EATON . SVX001A1-2A1B1

<br /><br /> Item: Variable Frequency Drive<br /> Max. HP: 1<br /> Enclosure: NEMA 1<br /> Input Voltage: 240VAC<br /> Max. Output Amps: 4.8<br /> Output Voltage: 240VAC<br /> Input Phase AC: 3<br /> Output Phase AC: 3<br /> With Bypass / No Bypass: No Bypass<br /> With Line Contactor / No Line Contactor: No Line Contactor<br /> Starting Torque: 170%<br /> Torque @ 1 Hz: 120%<br /> Input Frequency: 50/60 Hz<br /> Output Frequency Range: 0 to 320 Hz<br /> Adjustable Acceleration Time: 0 to 3000 sec.<br /> Adjustable Deceleration Time: 0 to 3000 sec.<br /> Dynamic Braking: Internal Brake Chopper Circuit<br /> Height: 12.9"<br /> Width: 5"<br /> Depth: 7.5"<br /> Control Type: Keypad/Remote, Keypad/Ethernet and Other Communication Networks Available<br /> Key Pad Lockout: Yes<br /> Start/Stop Control: Start/ Stop and Speed Programmable<br /> Protection: Overvoltage, Undervoltage, Motor Thermal Overload, Drive Thermal Overload, Phase to Phase or Phase to Ground Short Circuit, Phase Failure<br /> Control Method: Sensor Less Flux Vector Automatically Calculates Optimum Motor Performance for Low Speed, High Starting Torque Applications, Excels at Pumping Applications<br /> Accepts Input Control Signal: Yes<br /> Display Type: LED<br /> Displays: Speed, Alarms and Programmable<br /> Digital Readout: Yes<br /> For Use With: 3-Phase Inverter Duty Motor<br /> Standards: UL, CSA, CE, EMC Emissions<br /> Green Environmental Attribute: Product Contributes To Reducing Energy Consumption
