EATON . FD2040

FD2040 MOLDED CASE, THERMAL MAGNETIC; F FRAME; 600 VAC AT 50/60 HZ, 250 VDC; 40 AMPERE AT 40 DEG C; 2 POLE; INTERRUPTING RATING 65 KILOAMPERE AT 240 VAC, 25 KILOAMPERE AT 480 VAC, 18 KILOAMPERE AT 600 VAC, 10 KILOAMPERE AT 250 VDC (UL); 65 KILOAMPERE AT 220/240 VAC, 35 KILOAMPERE AT 380/415/440 VAC, 18 KILOAMPERE AT 500 VAC, 10 KILOAMPERE AT 250 VDC (IEC); TERMINAL STANDARD PRESSURE LOAD TERMINAL; SIZE 2.75 INCH W X 3.375 INCH D X 6 INCH H; APPROVAL UL; FD MODEL; APPLICABLE STANDARD IEC 157-1

50 AMP - 2 Pole -480 Volt Molded Case Circuit Breaker

Cutler Hammer FD2040 molded case, thermal magnetic; f frame; 600 vac at 50/60 hz, 250 vdc; 40 ampere at 40 deg c; 2 pole; interrupting rating 65 kiloampere at 240 vac, 25 kiloampere at 480 vac, 18 kiloampere at 600 vac, 10 kiloampere at 250 vdc (ul)

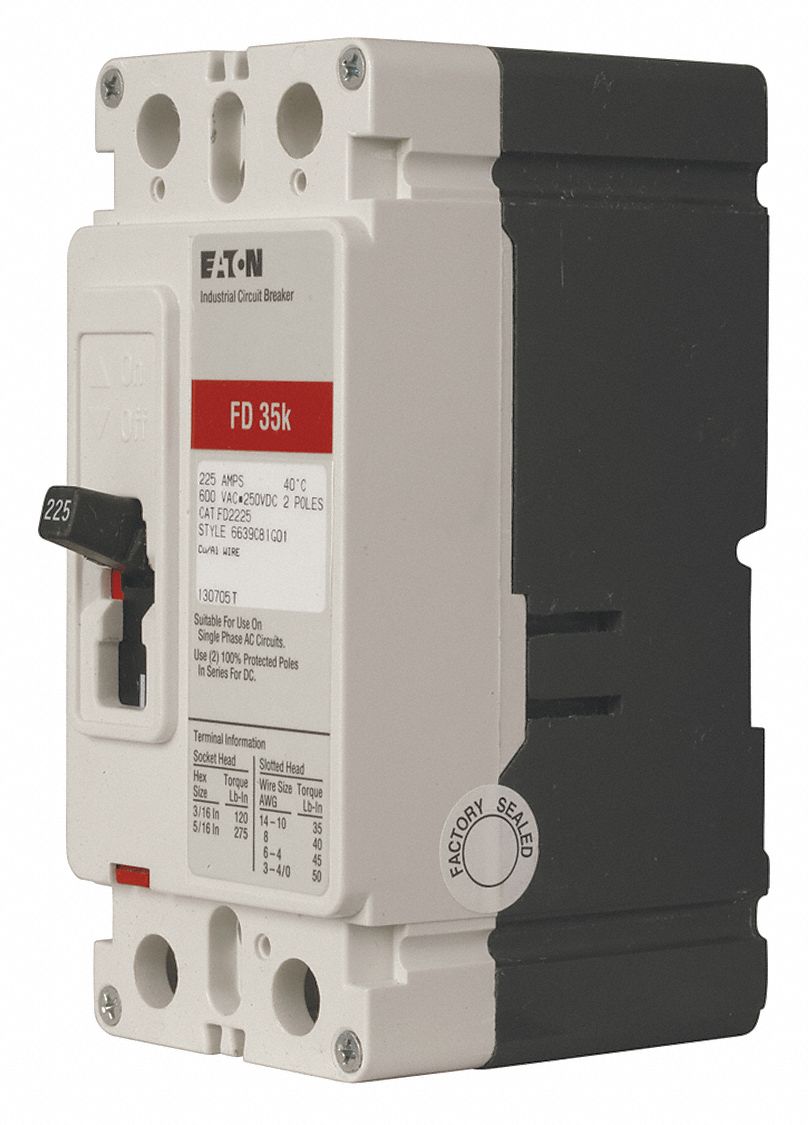

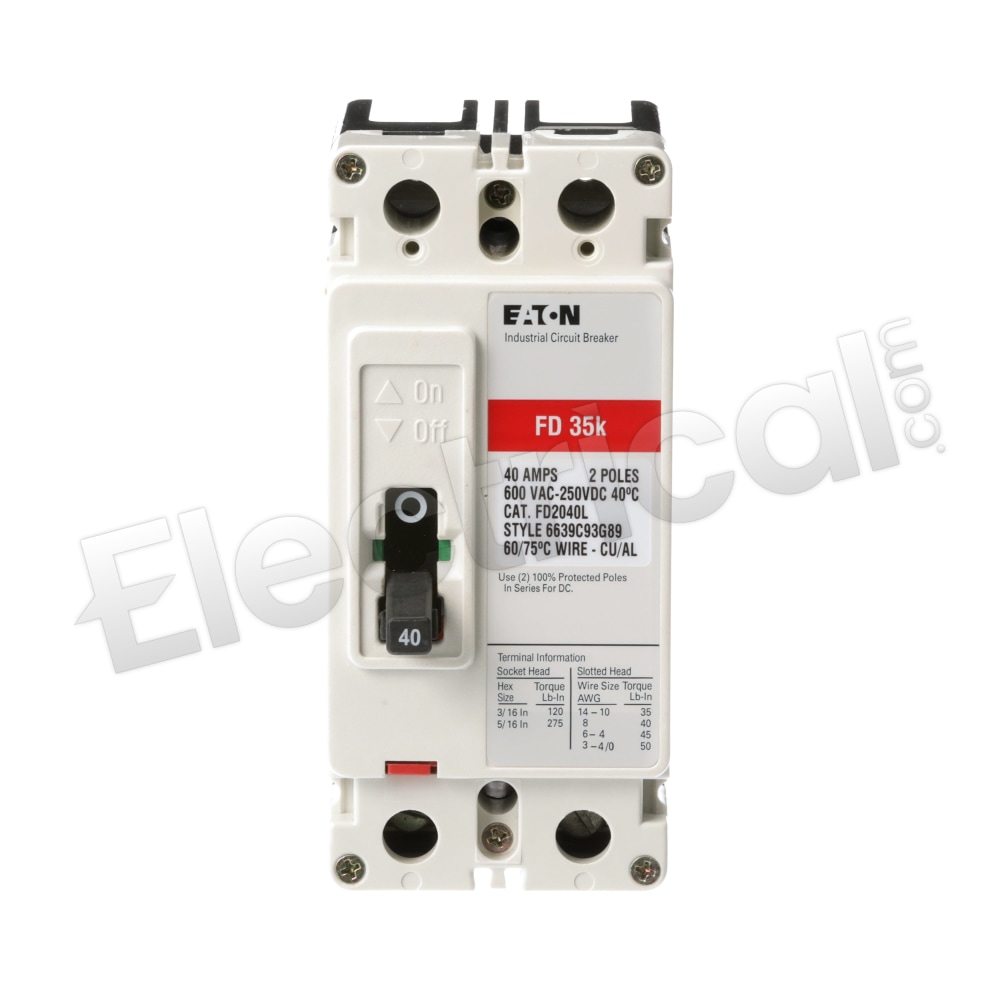

Images are for representation purpose only. Actual product may differ from specifications shown in photo. To check if the actual product is shown in image, or to request additional photos, please send us a message.<ul><li>FD2040</li><li>Cutler Hammer</li><li>Molded Case</li><li>Series C</li><li>FD</li><li>1 Phase</li><li>2 Pole</li><li>600 Volt</li><li>40 Amp</li><li>Bolt-On</li><li>Thermal Magnetic</li><li>(LI) Long-Time and Instantaneous</li><li>35kA@480V</li></ul>Depending on the item, some prices may be negotiable. Feel free to send us a message and make us an offer. We'd be happy to work with you within your budget, and all reasonable offers will be considered. We do our best to respond to most messages within one business day. Breaker Outlet specializes in new and obsolete circuit breakers, motor control, switchgear, and other electrical distribution. We have an extensive offline inventory, so if there's something you need that's not listed, please contact us and we may be able to get it for you. Our knowledgeable customer service team is here to help you with any questions, and we look forward to the opportunity to meet your electrical needs.

Molded-case F-frame circuit breaker is designed with standard load terminals and suitable for reverse-feed use. Thermal magnetic trip type Load side lug connection<br /><br /> Item: Circuit Breaker<br /> Amps: 40<br /> Number of Poles: 2<br /> Circuit Breaker Type: Standard<br /> AC Voltage Rating: 600VAC<br /> DC Voltage Rating: 250VDC<br /> For Use With: Eaton MCC Eaton, Switchboard, Westinghouse, Allen Bradley MCC, Rockwell Automation Enclosed Control<br /> Series: FD<br /> Trip Type: Thermal Magnetic<br /> Terminal Connection: Load Side Lug<br /> Max. AIR Rating: 35 kA<br /> Phase Connection: A<br /> Mounting: Free Standing<br /> Height: 6.00"<br /> Width: 2.75"<br /> Depth: 3.38"<br /> Min. Wire Size: 14 AWG<br /> Max. Wire Size: 1/0 AWG<br /> Instantaneous Trip: Fixed<br /> High Amp Trip Setting: 150A<br /> Low Amp Trip Setting: 15A<br /> Frame Size: 150/F<br /> Phase: 1<br /> Standards: UL Listed, IEC, CSA Certified, CCC, CE Marked, NEMA, IEC, VDE
