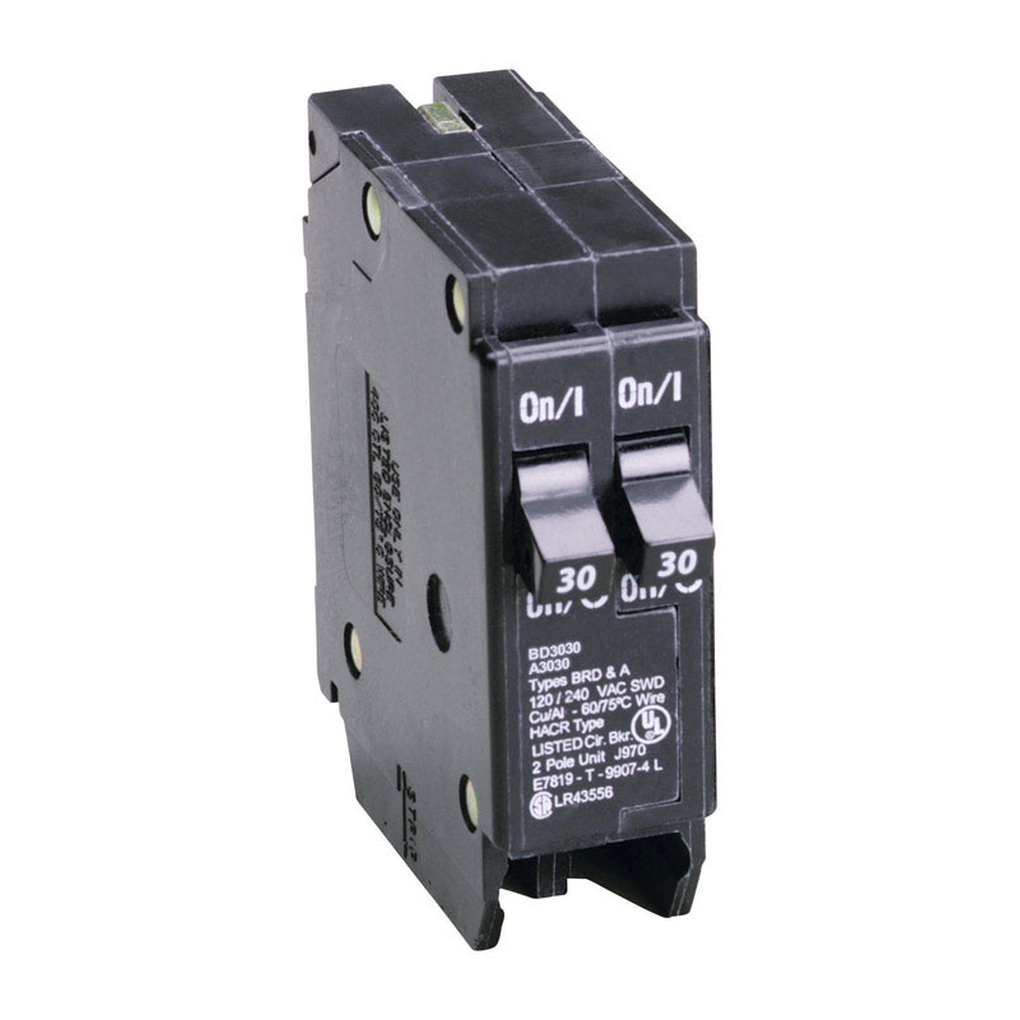

Circuit breakers protect the wires in your home from overheating (referred to as an overload) and fault currents (referred to as short circuits). The Eaton Cutler-Hammer 30/30 Amp 1 in. Duplex Type BD Circuit Breaker is also known as tandem or circuit limiting breaker. This style of breaker will only fit into load center bus stabs that are notched to accommodate the rejection clip built into the bus bar contact on the breaker. This is a code requirement that limits the number of breakers that can be installed into a load center.

Mfr Brand Name: CUTLER HAMMER / Catalog No.: BD3030 / Product Name: CUTLER HAMMER BD3030 U 30A 120V 2P {AIC}K USED / Amps: 30 / Volts: 120 / Poles: 2 / AIC Rating: 10K

Mfr Brand Name: CUTLER HAMMER / Catalog No.: BD3030 / Product Name: CUTLER HAMMER BD3030 N 30A 120V 2P {AIC}K NEW / Amps: 30 / Volts: 120 / Poles: 2 / AIC Rating: 10K

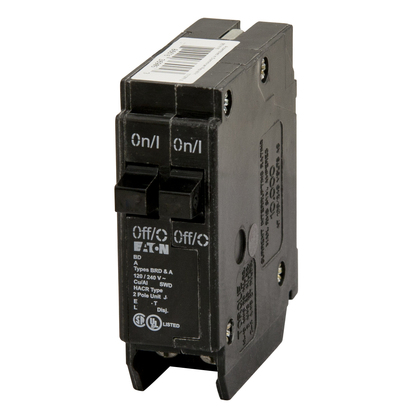

Eaton’s Type BD circuit breakers protect the wires in your home from overheating (referred to as an overload) and fault currents (referred to as short circuits). Our BD breakers are 1-inch wide and trip to the center position. Type BD breakers are UL approved genuine replacement breakers for loadcenters made by Westinghouse, Challenger, and Bryant. They are available in 1, 2, or 3 poles from 10 to 150 AMPS. In addition, arc fault and ground fault breakers are available in the Type BR line. - 30 AMPS per pole - 2-pole breaker, takes two inches of space - For use with Eaton Type BR loadcenters

Cutler Hammer BD3030 thermal magnetic, duplex, independent trip; 3 pole; 120 vac; 30 ampere (outside pole, inside pole); interrupting rating 10 kiloampere; wire size 14 to 4 awg (aluminum/copper); plug on mounting; approval ul 489; used on load center; bd model
