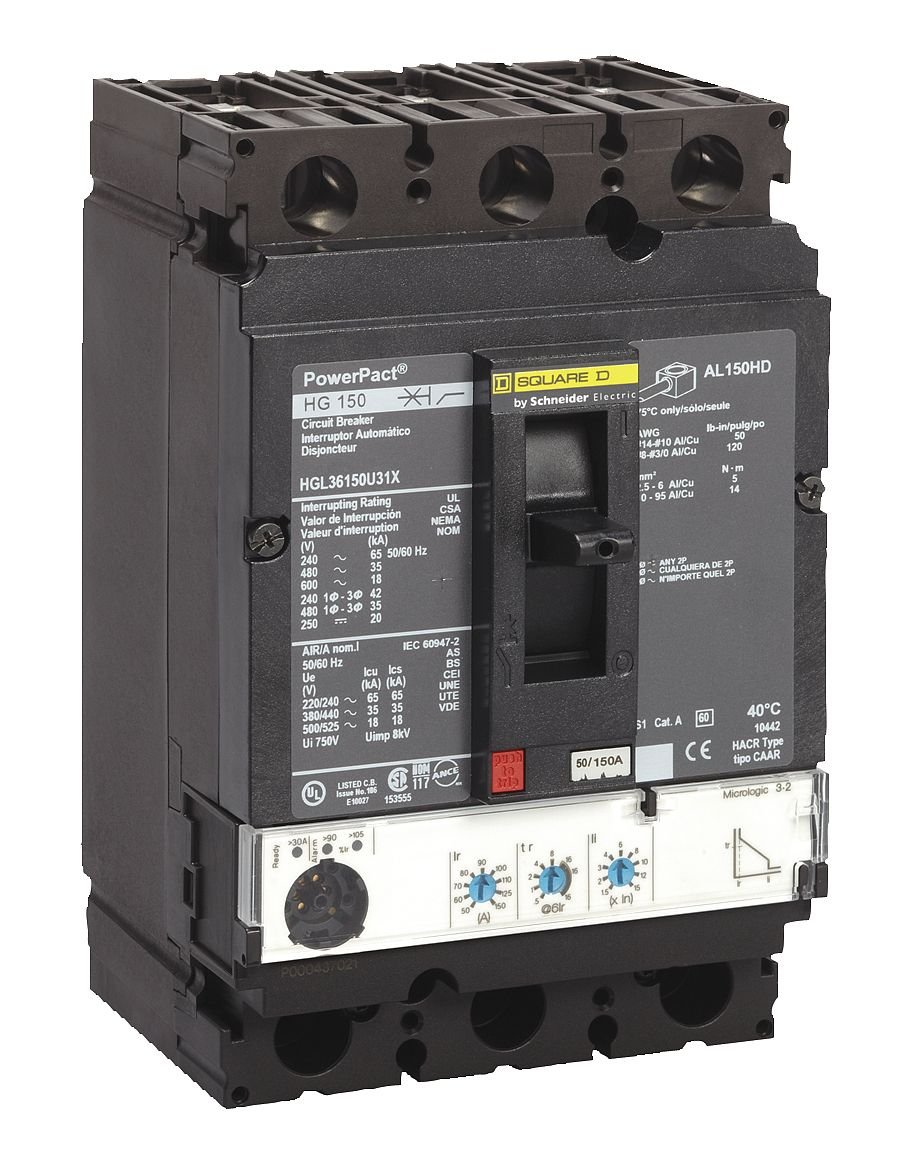

Technical Specification Item Molded Case Circuit Breaker Amps 100 AC Voltage Rating 600VAC Max. AIR Rating 65kA at 240VAC Series HG High Amp Trip Setting 60A Low Amp Trip Setting 100A Circuit Breaker Type Micrologic Standard W LSI Functionality Number of Poles 3 DC Voltage Rating 250VDC Terminal Connection Box Lug Trip Type Thermal Magnetic Phase 3 Instantaneous Trip Adjustable Phase Connection ABC Frame Size 150A/HG Circuit Breaker Mounting Style Free Standing Height 6.4 Width 4.1 Depth 3.4 Min. Wire Size 14 AWG Max. Wire Size 3/0 AWG Circuit Breaker Actuator Toggle Standards UL Listed, IEC, CSA Certified, Federal Specification W-C-375B/GEN, CE Marked, NEMA, NMX, UTE, VDE, BS, CEI, UNE, CCC, HACR, HID, SWD, NOM Compliance and Restrictions Hazardous material - General This listing is for each. Product Range: PowerPact Series Current Rating: 100A No. of Poles: 3 Pole Supply Voltage: 600VAC Circuit Breaker Mounting: Panel
