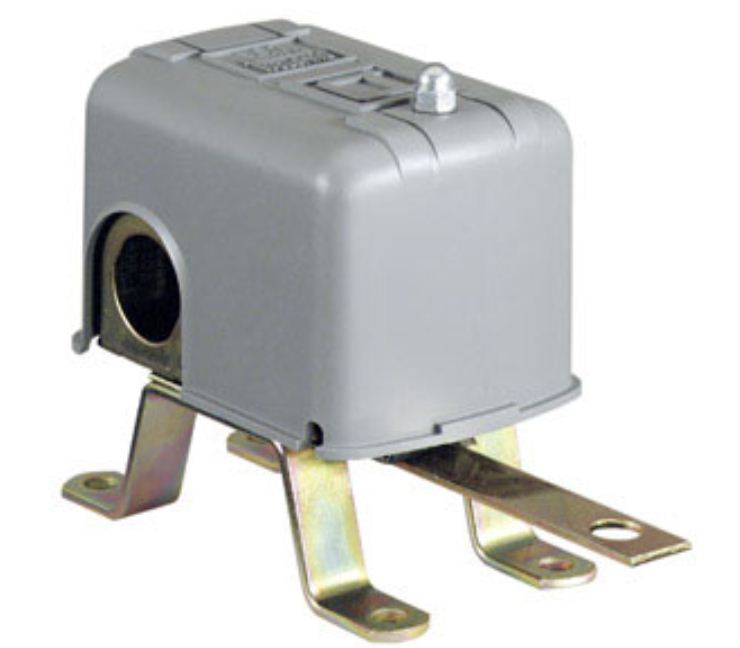

Square D - 9036DG2R - FLOAT SWITCH 575VAC 1 HP TYPE D+OPTIONS - RS

<p><b>Description</b><ul><li>The 9036DG2R Float Switches opens and closes an electric circuit by upward movement of the lever arm, controlling the liquid in a receiving tank or sump. The contacts of this reverse action switch open on liquid rise and are used for tank filling applications. Maximum force to trip the switch is 8 oz. or 227 g. Mount the switch horizontally using the mounting feet. This float switch does not provide motor protection, but it may be used as a pilot to operate an overload-protected starter. Liquid level control with electric motor operated pumps Contacts open on liquid rise Switch is UL listed and CSA certified Pressure switch is RoHS compliant Pedestal style mounting for open tank or sump applications</li><li> Switch Action: Open on Rise </li><li> Max Voltage: 575V </li><li> Poles: 2 </li><li> Amperage: 10</li></ul></p>

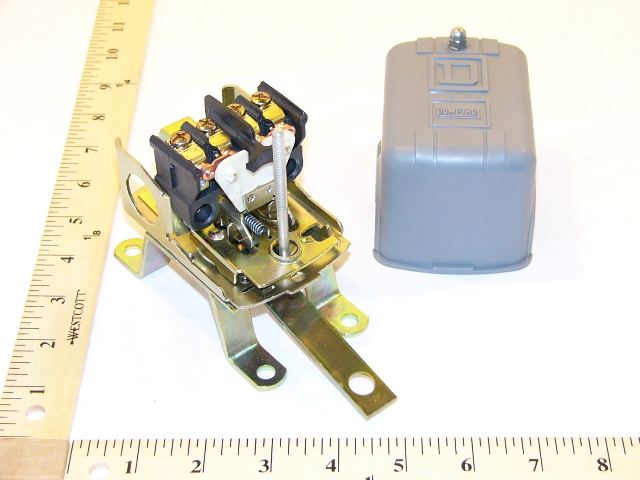

Square D Pumptrol Float Pressure Switch

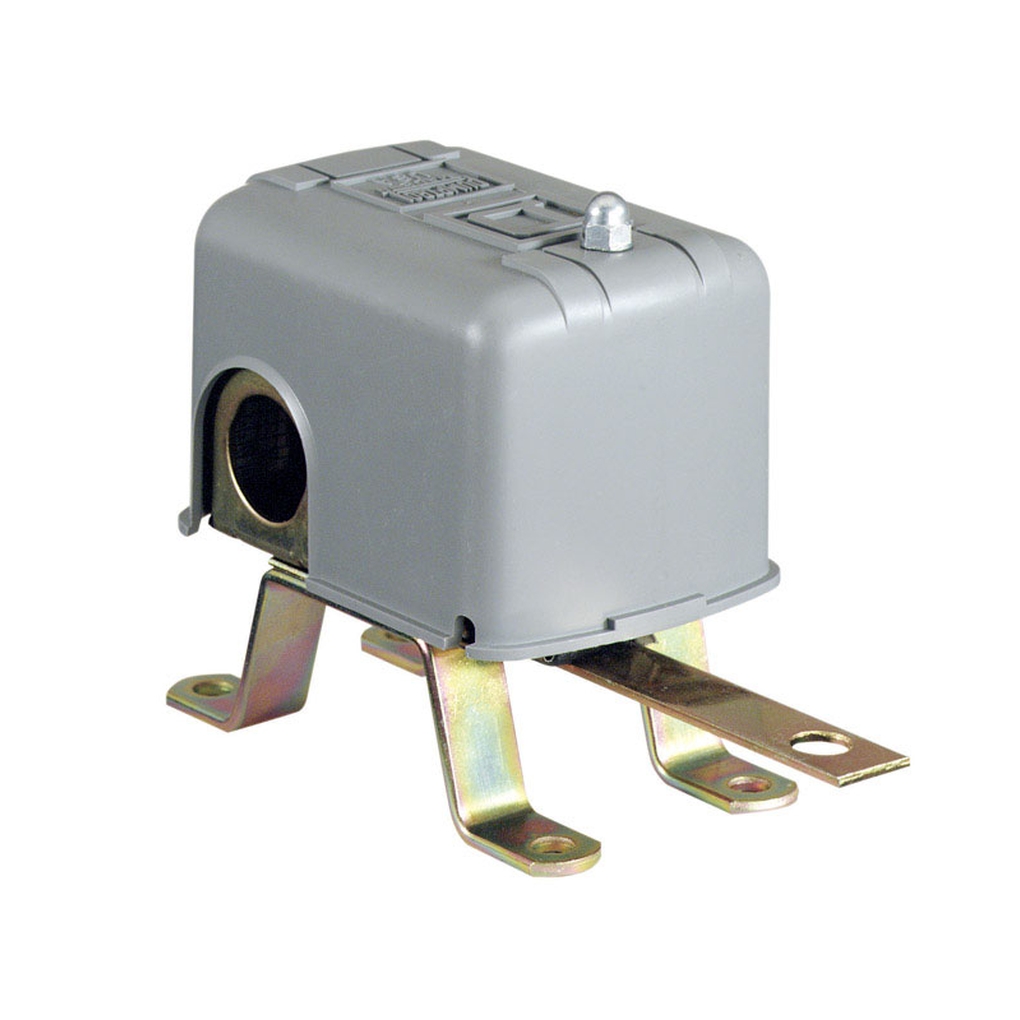

Square D Pressure Switch W/Reverse Lever

This float switch is designed to control small motor loads directly. It helps to provide a simple, positive means of mechanically altering two pumps or motors. Class 9036 switches are single-lever operated.<br /><br /> Item: Open Liquid Level Switch<br /> Amps: 10<br /> Contact Form: DPST<br /> VA Rating: 460VAC<br /> Float Travel: 1-1/4"<br /> NEMA Rating: 1<br /> Operating Temp. Range: -22 Degrees to 220 Degrees F<br /> Switch Function: Open On Rise<br /> Overall Length: 7.10"<br /> Float Material: Stainless Steel<br /> Float Length: 7.00"<br /> Float Dia.: 7.00"<br /> Height: 4.27"<br /> Width: 2.53"<br /> Max. Current: 600A<br /> Max. Voltage: 575<br /> HP @ 1 Phase - 120V: 2<br /> HP @ 1 Phase - 240V: 3<br /> HP @ 3 Phase - 240V: 5<br /> Mounting: Open Tank<br /> Body Material: Steel<br /> Float Position: Below<br /> Conduit Size: 3-1/2"<br /> Standards: UL, CSA<br /> Electrical Connections: Screw Clamp<br /> Includes: Reverse Action - Does Not Include Float or Rod

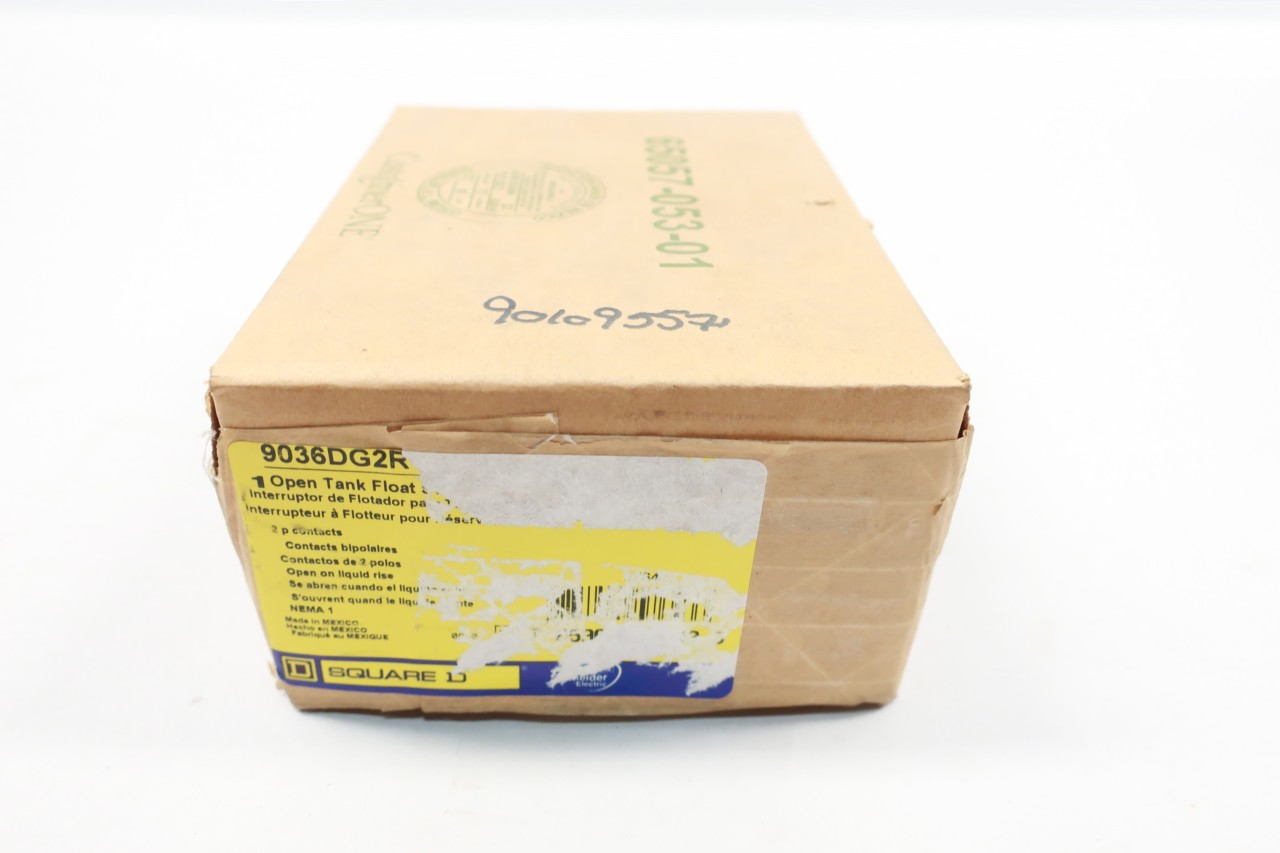

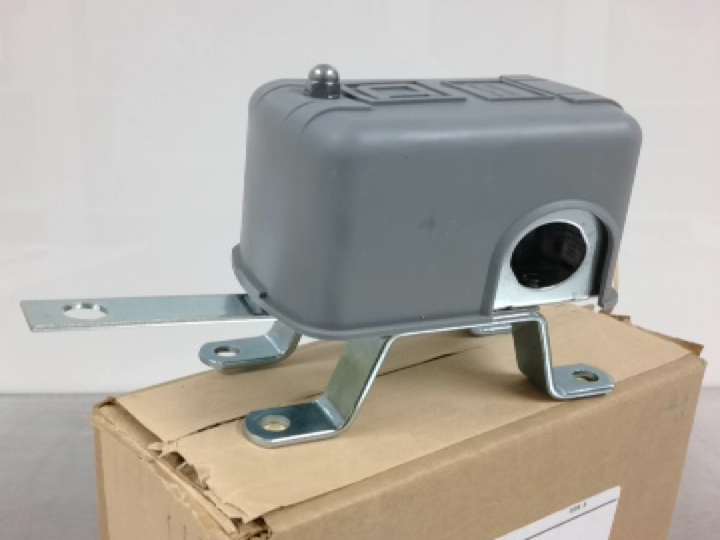

SQUARE D 9036DG2R OPEN TANK FLOAT SWITCH
