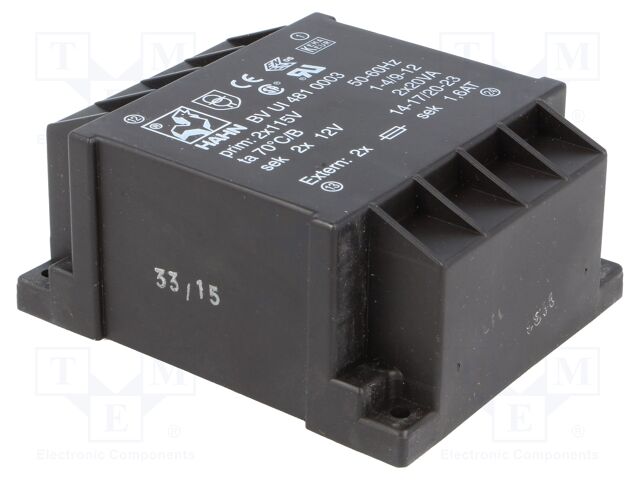

HAHN BV UI 481 0003 | Transformer: encapsulated; 40VA; 115VACx2; 12V; 12V; 1666mA; 1666mA

HAHN . BV UI 481 0003

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerHAHN
CategoryL1Transformers and Ferrite Cores
CategoryL2PCB transformers
Extra Product NameHAHN BV UI 481 0003 | Transformer: encapsulated; 40VA; 115VACx2; 12V; 12V; 1666mA; 1666mA
atoms, moq, multiple, tierMinQty11
jsonUrlData3e8c4df06f0d600b36b2e92e0d13473c.
jsonUrlData2540b9fda32fae8d8f579
keywordsHAHN, BV UI 481 0003, BVUI4810003, Transformers and Ferrite Cores, PCB transformers
MPNBV UI 481 0003
qtyInStock174
SKUBVUI4810003
snippetHAHN BV UI 481 0003 | Transformer: encapsulated; 40VA; 115VACx2; 12V; 12V; 1666mA; 1666m
tierMinQty25
tierMinQty325
tierMinQty4100
tierPrice125.61
tierPrice224.32
tierPrice322.4
tierPrice420.48
Type of transformerencapsulated
Power40VA
Primary voltage115V AC x2
Secondary voltage 1, Secondary voltage 212V
Secondary winding current 1, Secondary winding current 21666mA
MountingPCB
Conform to the normPN EN 61558-2-6:2000
Thermal classTa70C/B
Body dimensions83.7x70.6x38.7mm
Manufacturer seriesBVUI

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEBVUI4810003117411 @ $25.61, 5 @ $24.32, 25 @ $22.40, 100 @ $20.48
